104
Align the anti-rotation holes, install the lock bolts (2), and install and tighten 2 nuts.
Adjust the pin seal ring (3) to the orientation shown in above diagram.
Use a small wood hammer to press in the pin seal ring lightly. Take caution not to damage the
seal ring.
Lubrication of Joysticks and Pedals
Warning: Stop engine and remove key prior to maintenance
In event of inflexible operation of any joystick or pedal, please add oil for lubrication.
Joystick

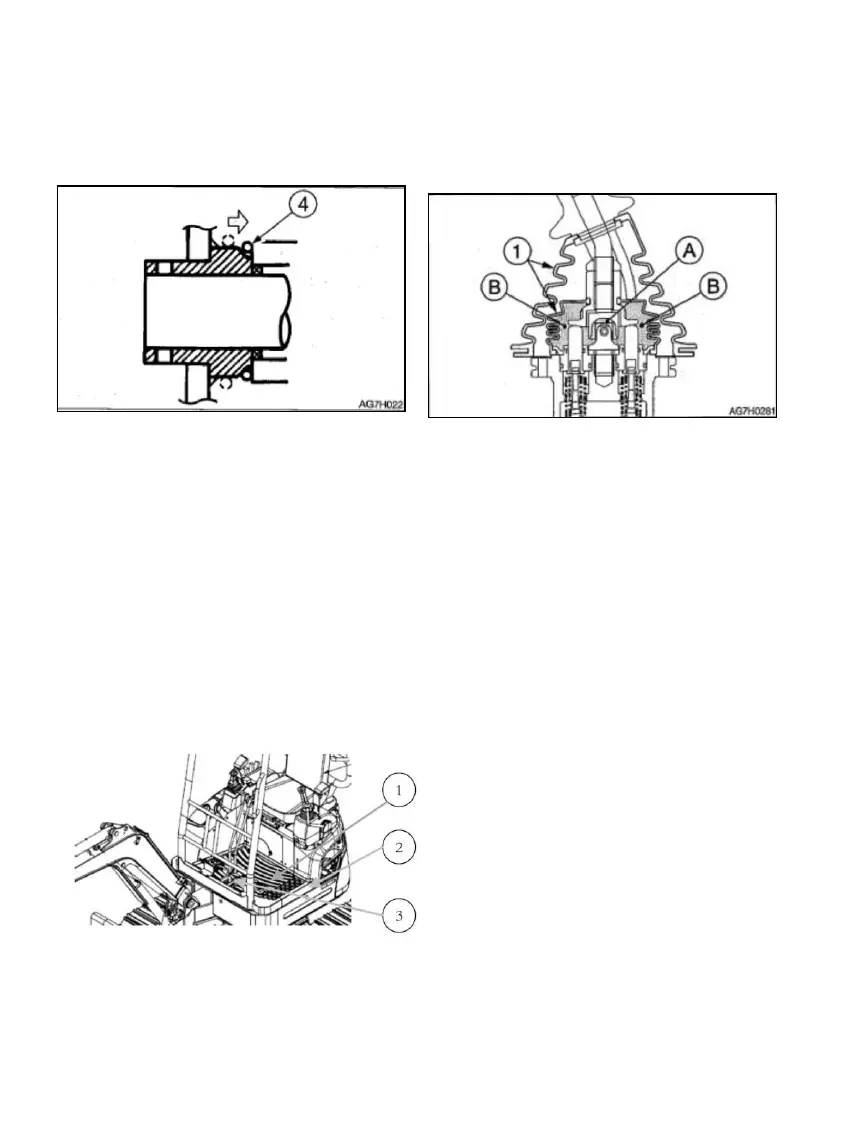

Replacement of Pin Seal Rings
Take out the base part beneath the protective sleeve (1) and upturn it.
Wipe away the old grease.
Spray grease to points (A) and (B).
Slide the O-ring (4).
Place the protective sleeve (1) to original position.
Joystick, and Pedal
Take out the floor mat (1).
Loosen the bolts and take out the cap (2).
Take out the base part beneath the protective
sleeve (3) and upturn it.
Wipe away excessive grease.
During installation, please operate in reverse
sequence of the disassembling procedure.
