49
Traveling Joystick/Pedal
Before operating the traveling joystick/pedal, ensure that the bulldozing blade is in front of the
driver seat. Please bear in mind that the operation direction of the traveling joystick/pedal with
bulldozing blade behind the driver seat is reverse to that with bulldozing blade in front of driver
seat.
Never place your foot onto the pedal, except the traveling operations. The accidental touch of
the pedal during operations may cause sudden movement of machine to result in serious injuries.
Use this joystick to operate the bulldozing blade.
Use this joystick/pedal to drive forward or backward and change the direction. Retract the pedal
when it’s not in use.
Boom swing pedal
When the pedal is not in use, hold the pedal cover at locking position. If it’s not locked, accidental
depressing of pedal may result in accidents.
Auxiliary hydraulic pedal
When the pedal is not in use, hold the pedal cover at locking position. If it’s not locked, accidental
depressing of pedal may result in accidents.
This pedal controls the hydraulic oil flow and direction in the auxiliary hydraulic circuit.
Tilt forward to lock the pedal. Tilt backward to unlock the pedal.

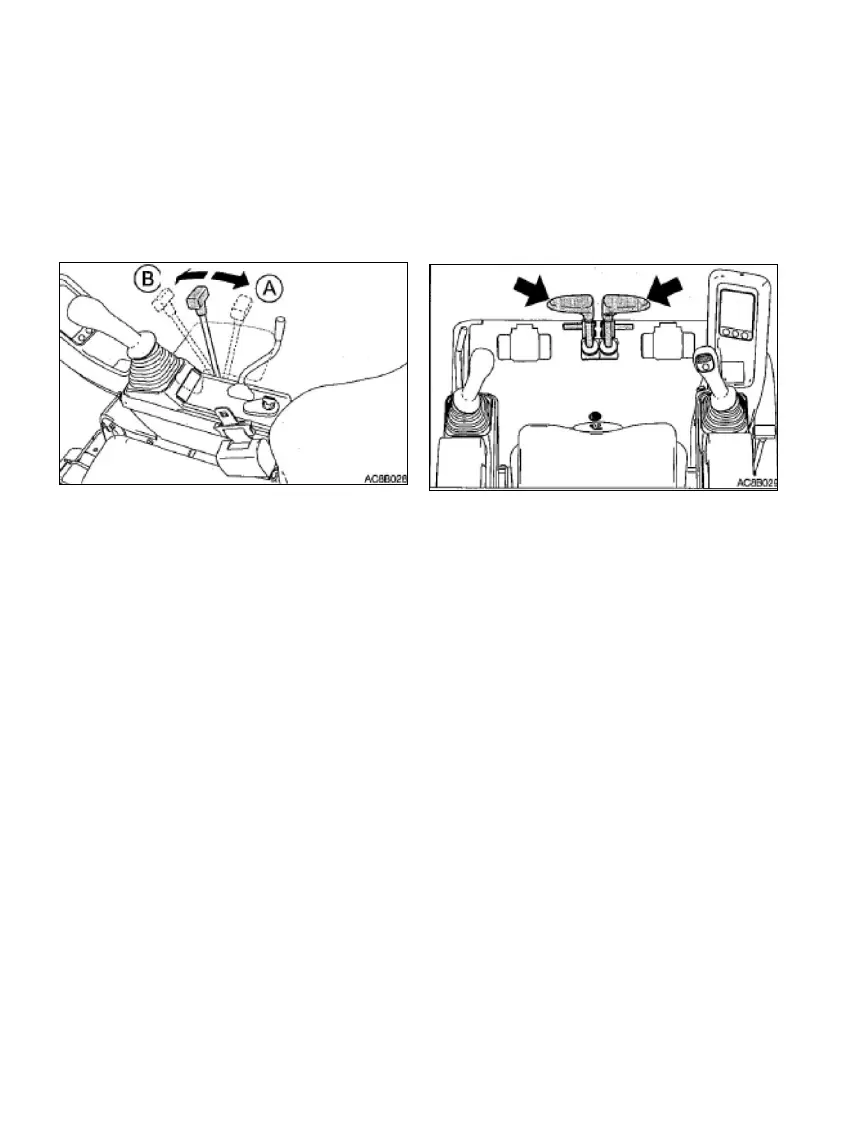

Use this pedal to swing the boom.
(A)…Rightward swing of boom
(B)…Leftward swing of boom:
Pedal Lock
Tilt forward to lock the pedal. Tilt backward to unlock the pedal.
