48

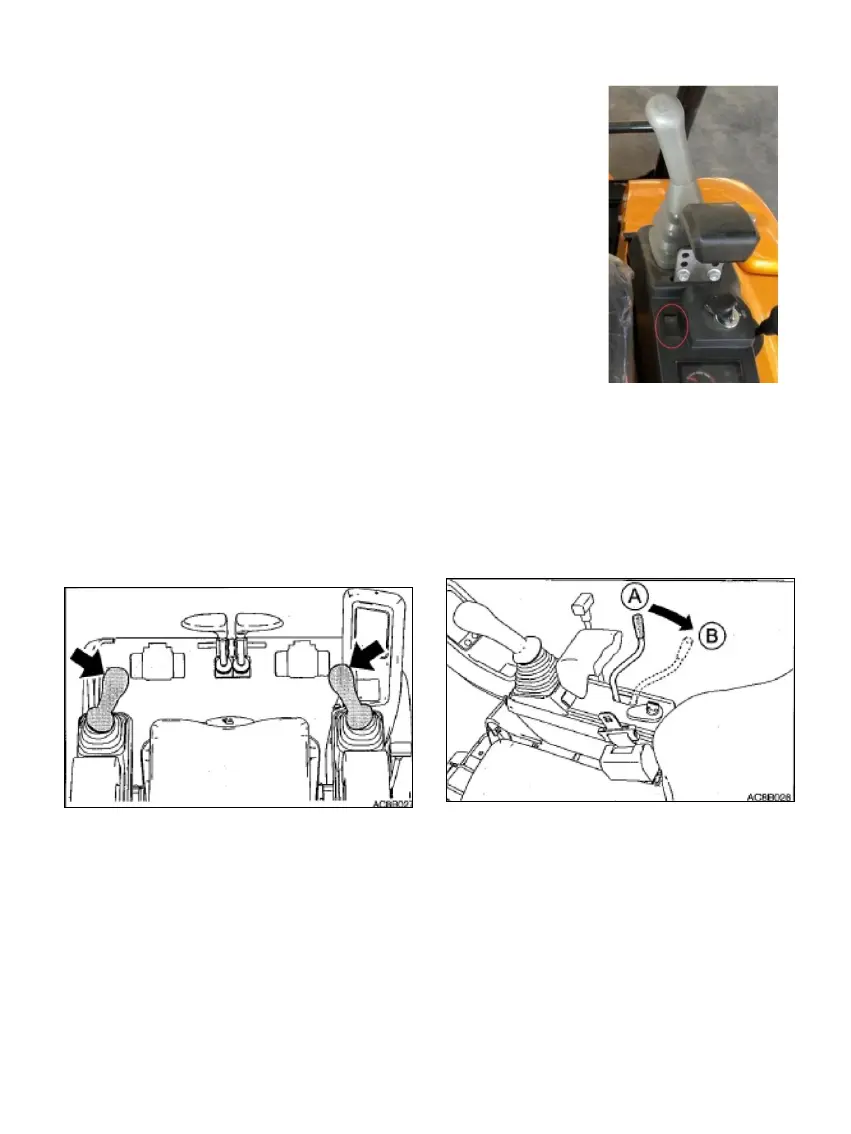

Traveling Speed Switch
The high/low speed switch is located beneath the right joystick
support.
It indicates the high-speed mode when the indicator lamp turns on.
It indicates the low-speed mode when the indicator lamp turns off.
This device is functioned to lock the operations of bucket working device and machine slewing.
When the handle is pulled up, the lock handle bracket pops up to lock the controls.
Accelerator joystick
It’s used to control the engine speed.
(A) … Low idling speed (B)… Maximum speed
Before starting operations, please carefully check and confirm the joystick mode to be used.
Control Mode
Bulldozing blade joystick
… Lift the bulldozing blade.
… Lower the bulldozing blade.
