Precaution
This instrument is a water-proof instrument, featuring stable performance and high conciseness
and elegance, and is an intelligent instrument developed specially for small excavators. To
guarantee the stable data and prolong the life of instrument, please notice the following issues:
Do not disassemble the instrument without permission.
Never brutally hammer or knock the instrument.
Guard against external damages.
Keep clean the panel. Any organic solvent or corrosive liquid, including diesel and gasoline, shall
be timely wiped away, in order to prevent corroding the panel.
Should you have any question during use, please timely contact service personnel.
After-Service Information
Please carry this warranty certificate during the repair of this product and repair by a sales point
of this device. Malfunction due to incorrect use of this device or non-authorized repair or
modification of this device will not be covered under warranty.
Malfunction due to fire, earthquake, gas leakage, windstorm, thunder and lightning, and
abnormal voltage will not be covered under warranty.

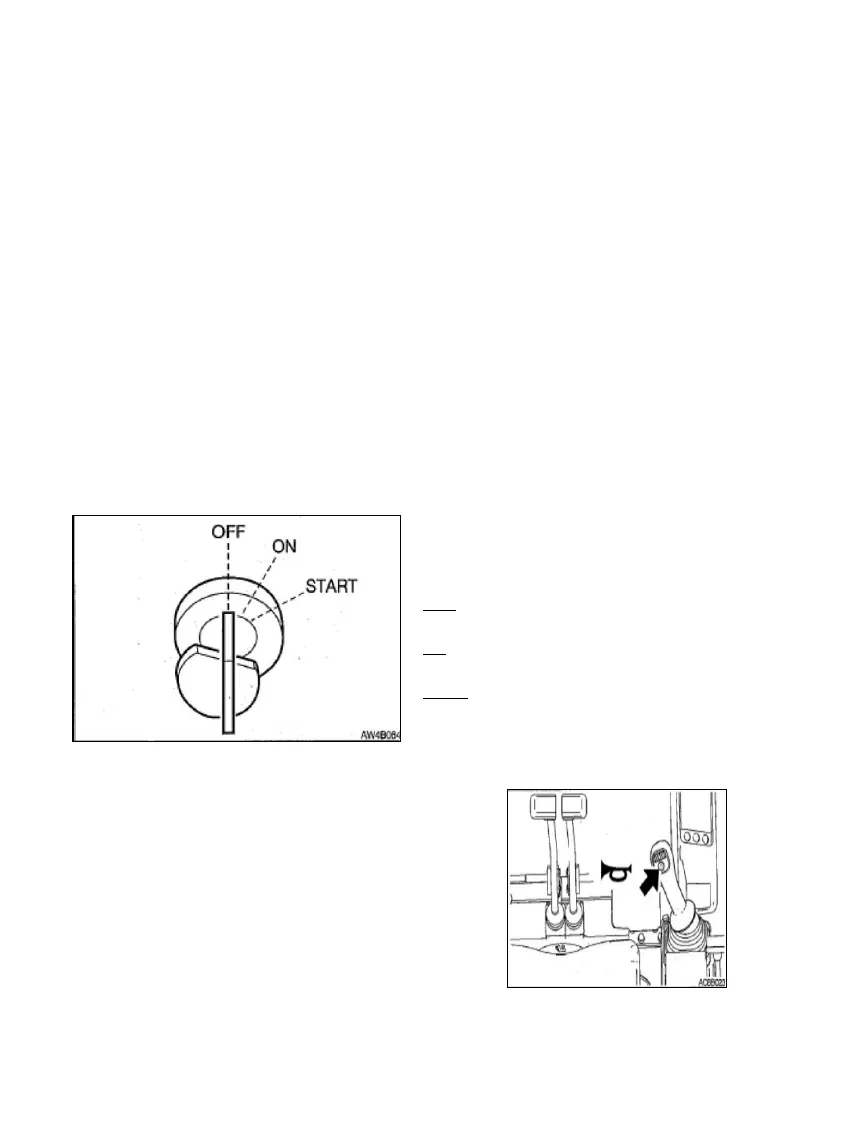

Switches Starter Switch
Important: Do not rotate the starter key from
OFF to ON and then from ON to OFF repeatedly
within a short time, otherwise it may result in
engine malfunction.
OFF This position is used to stop the
engine and insert and withdraw the starter key.
ON Engine running position. All electric devices
are functional at this position.
START Engine running position. Upon release of
key, the switch automatically returns to ON.
If the coolant temperature is too low, rotate
counterclockwise the key, hold for 10~15s, and then
release before start. Rotate the key to ON and then to
START to start the engine.
Horn button
Press the switch on the right joystick to sound the horn.
