56
Longitudinal Movement of Machine
Pull the accelerator joystick to increase the engine
speed.

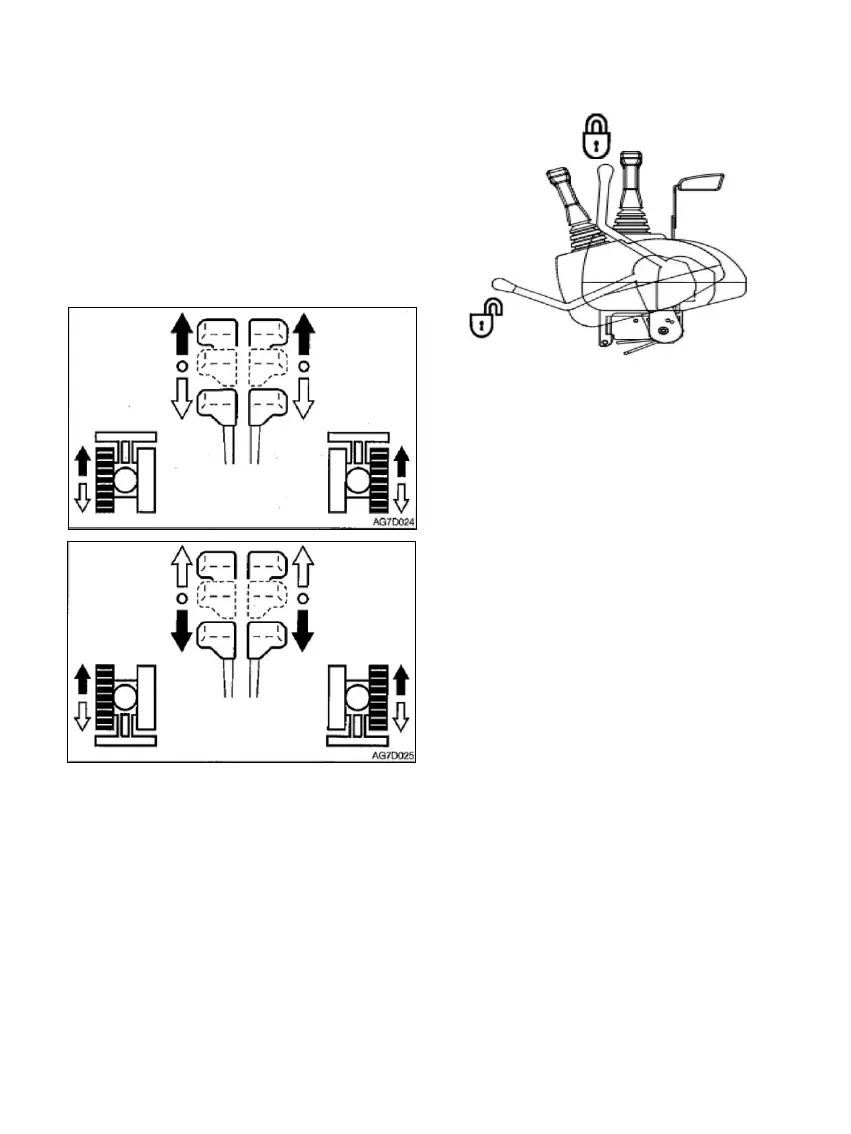

Completely lower down the safety lock handle to
unlock.
Retract the bucket working device and lower to
30~40cm off the ground.
Lift the bulldozing blade.
Operate the traveling joystick as per following
procedure.
When the bulldozing blade is in the front of
cab:
When the bulldozing blade is in the rear of
cab: To drive forward:
Pull backward the joystick. To drive backward
Pull forward the joystick.
Traveling at High Speed
When the machine is traveling at high speed
and a load higher than set value is applied, the
machine will automatically slow down to low
speed. If the load is reduced, the machine will
accelerate and return to high speed. Please be
noted that the traveling speed changes based
on the load condition.
To drive forward:
Pull forward the joystick. To drive backward:
Pull backward the joystick.
Press this button to switch over between high speed and low speed.
Pivot Steering
Left turn during traveling:
To turn left during forward traveling: Place the left joystick to neutral position. When walking
backward:
Place the left joystick to neutral position. To turn rightward during traveling, operate the right
joystick by same operation method of left joystick.
