68

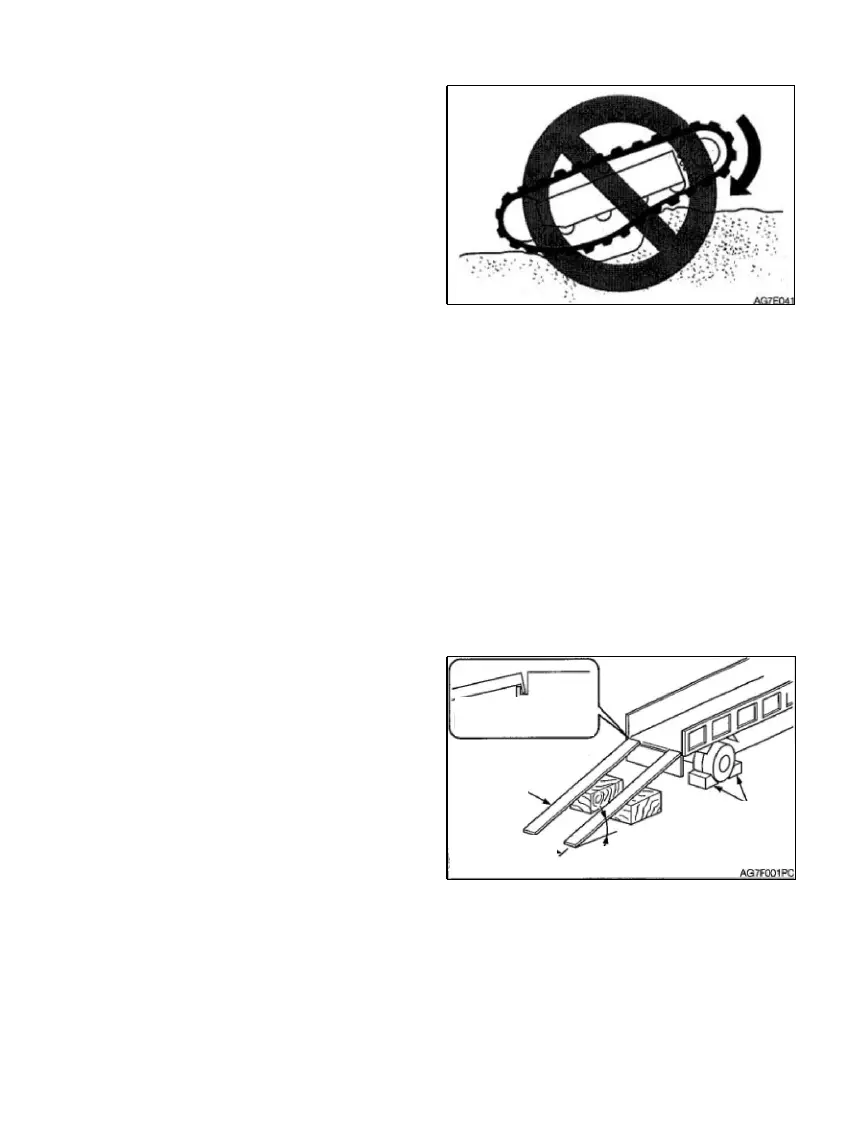

Please avoid driving the machine with one track
on a slope or protrusion and the other track on
level surface (In such case, this machine is
inclined by 10° or more). Please drive the
machine with both tracks on level surface.
Do not change the direction when the tracks are
loose.
Transportation
Loading and Unloading
The machine may roll over or fall off during
unloading. Ensure to take the following safety measures:
Select a solid and level ground and keep a sufficient spacing from the road curb.
Fix the ramps of sufficient strength and dimensions to the cargo body of truck. The inclination of
the ramps shall not exceed 15°. If the ramps deflect downward excessively, please support the
ramps by supports or cushion blocks.
Do not load or unload the machine by working device. Otherwise, it may result in rollover or
falloff of machine.
Keep the truck cargo body and the ramps clean without oil, sand, ice/snow, or other impurity, in
order to prevent the sideslip of machine
Do not slew/swing on ramps. Otherwise, the machine may roll over.
Slewing/swinging the machine on the cargo body of truck may result in unstable legs of machine.
Therefore, operate slowly.
If possible, lock the cab doors after loading. Otherwise, the cab doors may open during the
transport.
Plug securely the tracks by wedges and then fix
the machine to the truck cargo body securely by
ropes or chains.
Block the wheels of transport truck by wedges to
prevent movement.
While loading or unloading the machine, drive
the machine slowly in 1st gear (low speed) as per
the signals of the signaler.
Do not change direction on ramps.
Securely apply the parking device of transport
truck and block the wheels by wedges.
Place the ramps securely onto the truck cargo body. The inclination of the ramps shall not exceed
15°.
Align the center of truck cargo body with the center of machine and align the center of ramps
