69
with center of tracks.
Ensure that the bulldozing blade will not touch
the ramps.
Lower the bucket working device as low as
possible and take caution not to impact it with
the transport truck.
Reduce engine speed.
transport truck.

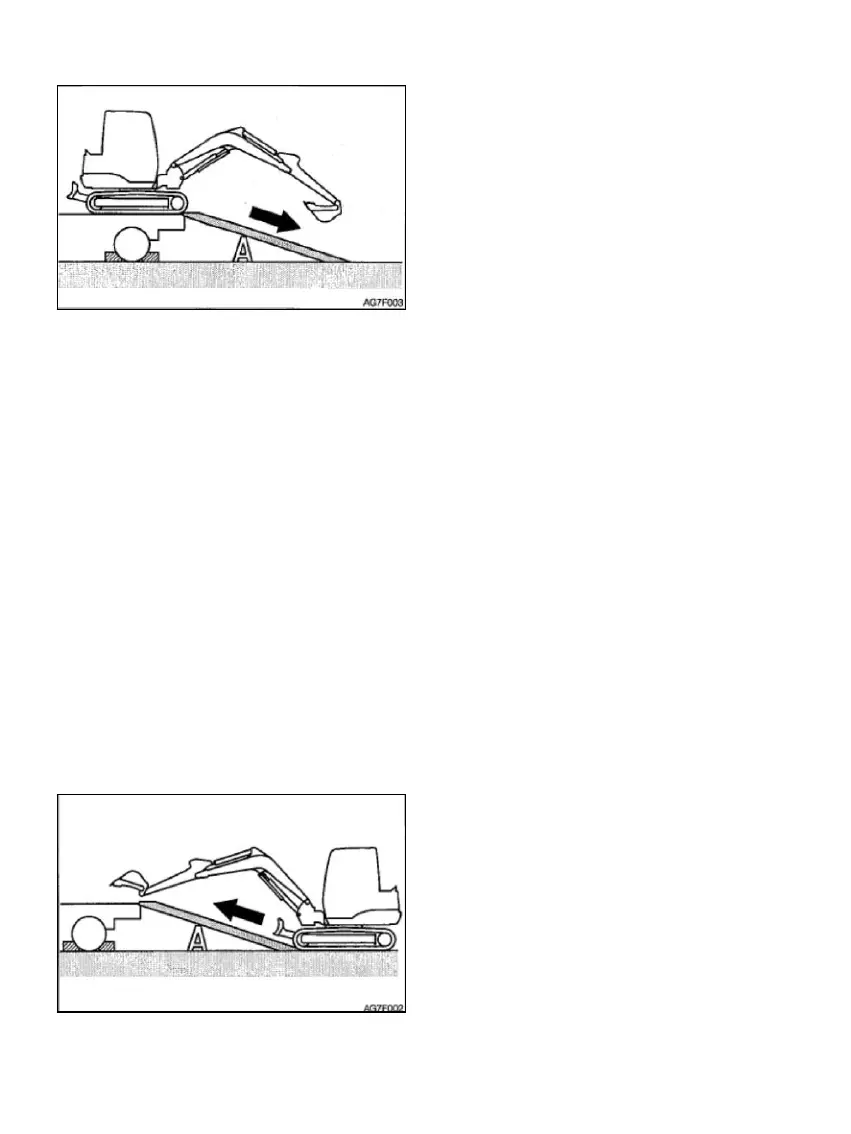

According to the signaler’s signals, drive the
machine straightly up or down along the ramps in 1st gear (low speed).
Load the machine to designated position
Lifting of Machine
Daily check the lifting device for damaged and missing parts and when necessary, replace.
Please use the ropes of sufficient capacity for the machine weight during lifting.
Lift the machine as per the procedure described below. Do not operate by any other method.
This is really dangerous as it may result in imbalance of machine.
Do not operate the lifting if there is any operator on the machine.
Operate slowly during lifting to prevent the rollover of machine.
During lifting, keep all personnel away from working zone. Do not move the machine over any
person.
Important: This lifting method is applicable for the models with standard overall parameters. The
gravity center varies depending on the installed attachments and optional devices.
To understand more details, please contact your service dealer.
Lifting
Slew the superstructure to place the bulldozing blade behind the machine (Adjust the
superstructure to be parallel with track frame).
Lift the bulldozing blade to highest position.
Sufficiently extend the bucket cylinder and bucket arm cylinder and lift the boom to highest
position.
To Next Page
