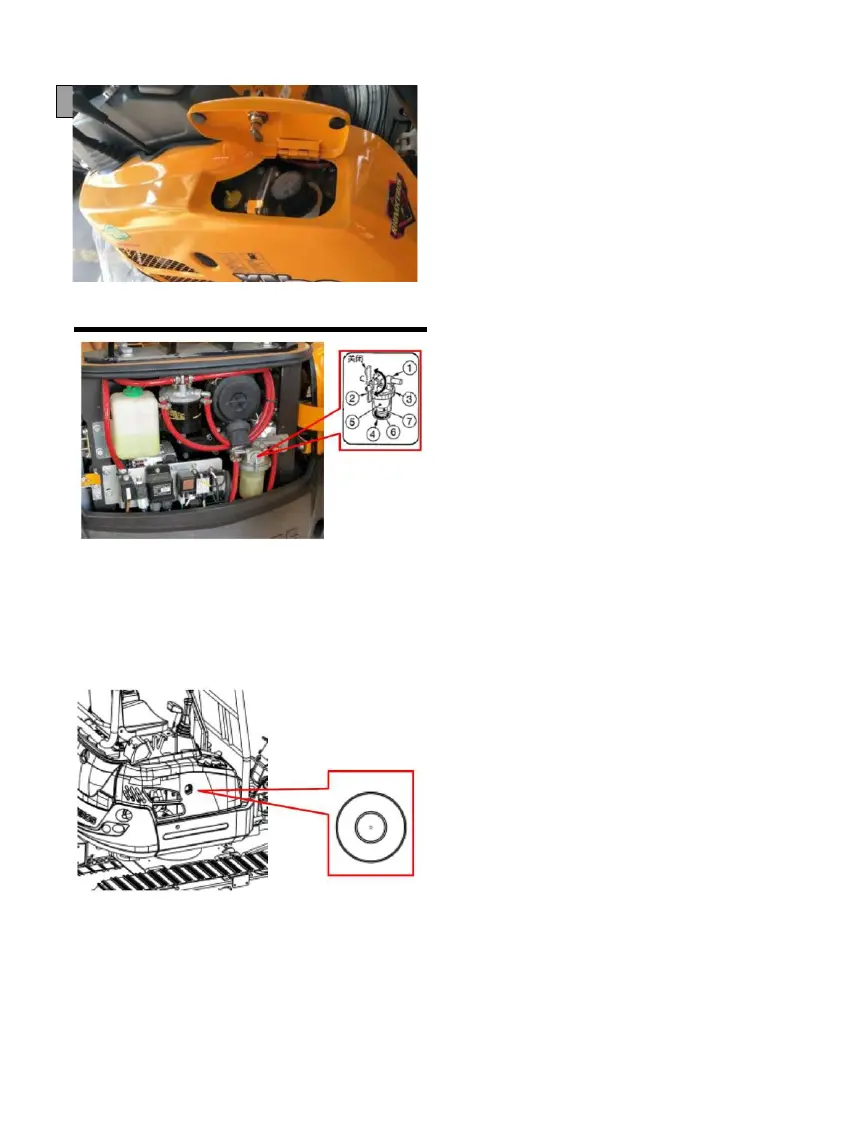

Check the fuel level by fuel gauge (1).
F: Full tank. E: Empty tank.
If the fuel level is low, open the fuel tank cap.
Checking of Fuel-Water Separator
Checking of Fuel-Water Separator (1).
Open the engine hood.
If the red indicator ring (6) submerges to the
bottom, there is no mixture of water.
If the red indicator ring (6) floats, the water
reaches the ring level.
Drain water and clean.
Checking of hydraulic oil tank oil level and
adding of oil
Warning
Disassembling cap or filter or disconnecting
pipeline before the pressure relief of hydraulic system may result in out-spray of hydraulic oil.
Slowly loosen the ventilation plug to relieve the internal pressure of tank.
Checking
The oil level varies along with the oil temperature. Maintain the machine and check the fuel
status by the posture shown in the diagram below.
Start the engine and run at low speed.
Fully extend the track width.
Fully retract the cylinders (Bucket arm and
bucket cylinders) and lower the bucket onto
the ground.
Lower the bulldozing blade and then stop the
engine.
Check the oil level by level gauge (1).
When the oil temperature is approximately
20℃:
The oil level shall be within upper limit (H) and lower limit (L).
If below the lower limit, add oil.
When the oil temperature is approximately 50~80℃:
The oil level shall be slightly lower than upper limit.
