Digi Connect Wi-SP User Manual

Troubleshooting System status LEDs
Digi Connect Family and ConnectPort TS Family
145
LED/button Color and Light Pattern Description
Power LED Red (labeled PWR) This LED is software programmable. By default,
this LED indicates power (and is therefore always
on).
Digi Connect WI-SP

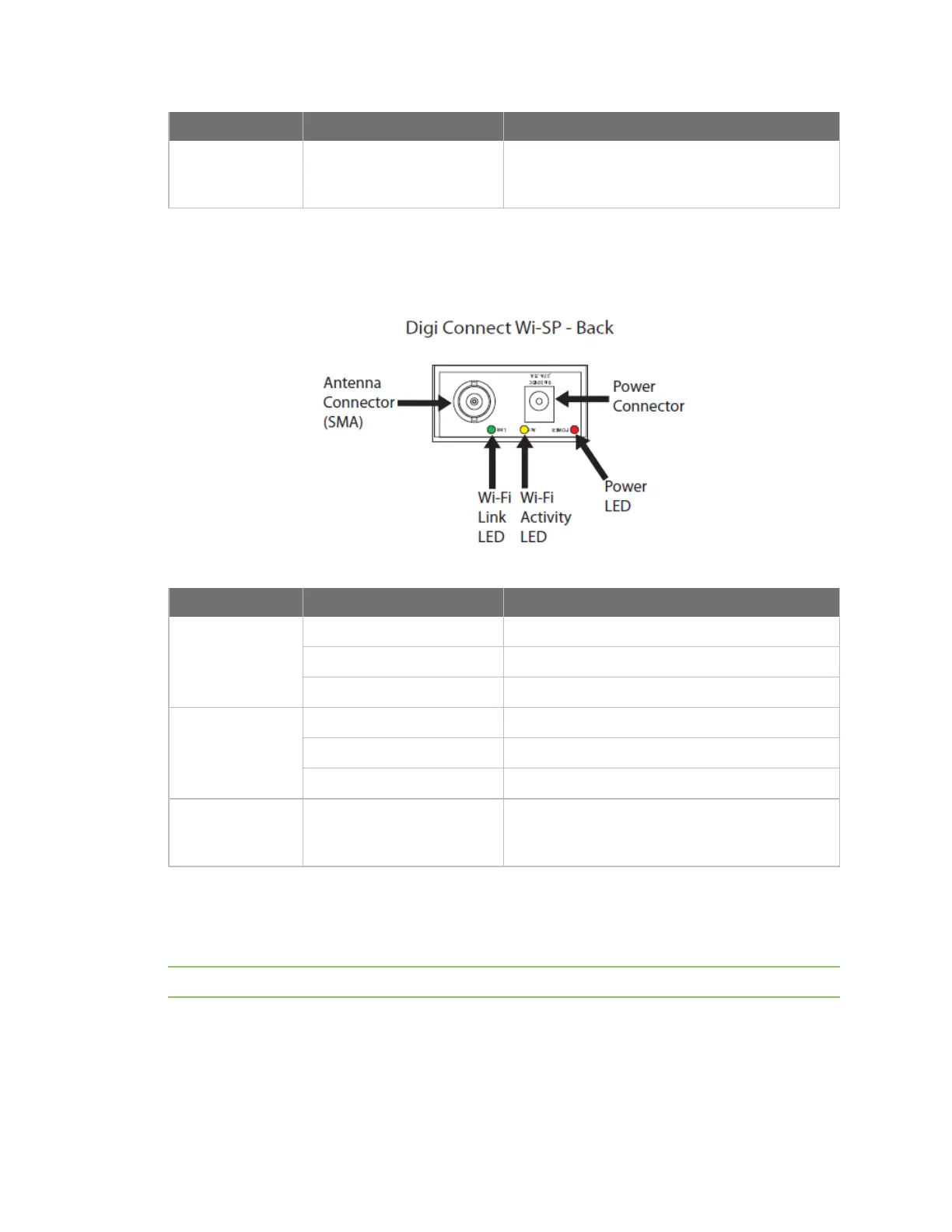

Digi Connect Wi-SP has three LEDs: Wi-Fi Link and Wi-Fi Activity, which are connected directly to the
hardware; and the Power LED, which is software programmable.
LED/button Color and Light Pattern Description
Wi-Fi Link Status
LED
Solid green Unit is associated with an access point.
Green, blinking slowly Unit is in ad hoc mode.
Green, blinking quickly Unit is scanning for a network
Wi-Fi Activity
Status LED
Solid yellow Bad initialization
Off The Wi-Fi link is idle.
Blinking yellow Traffic is on the Wi-Fi link.
Power LED Red (labeled PWR) This LED is software programmable. By default,
this LED indicates power (and is therefore always
on).
Digi Connect ME
The Digi Connect ME module has two LEDs that are located near the upper corners of the Ethernet
port (see the following figure).
Note The LEDs are the same for a module with or without a JTAG connector.
