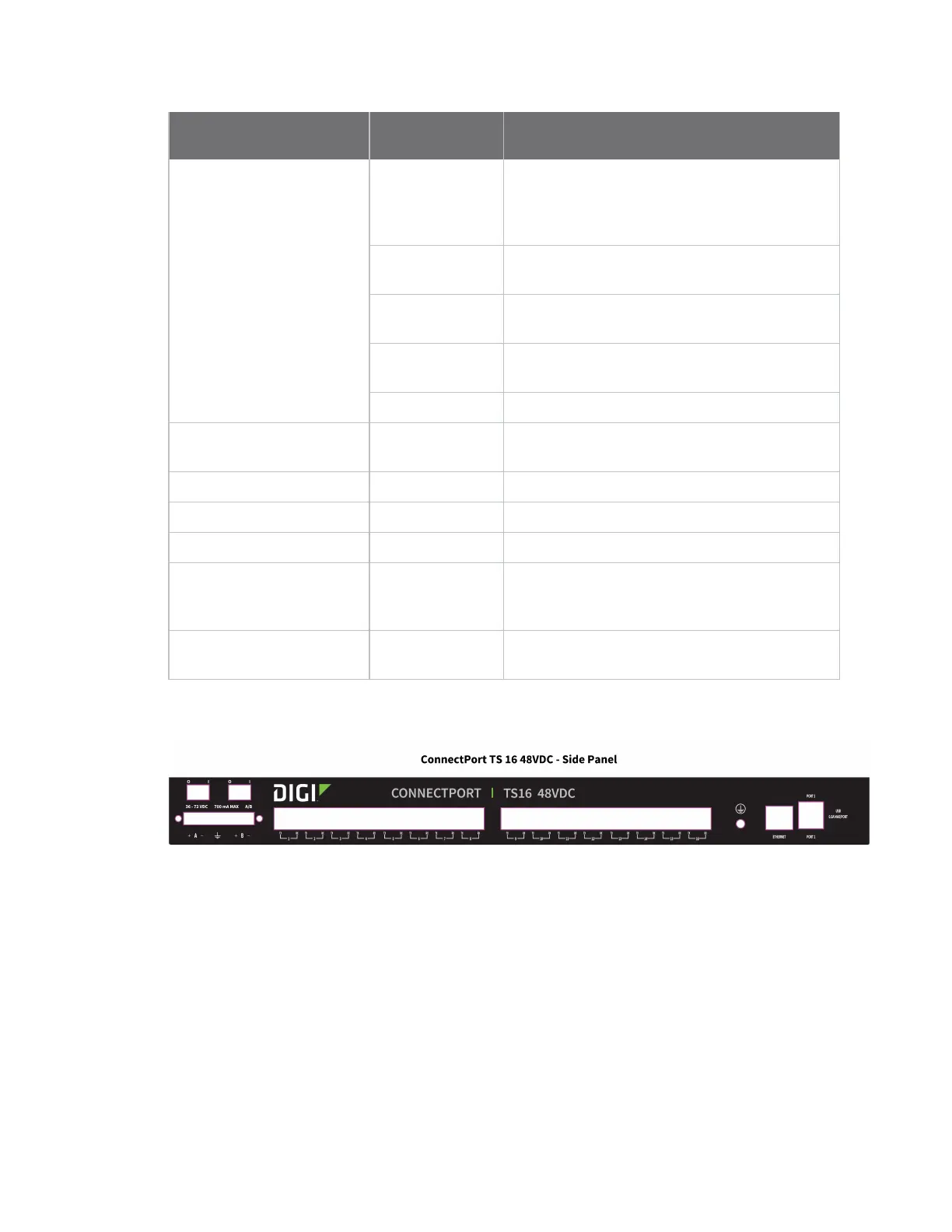

Troubleshooting System status LEDs
Digi Connect Family and ConnectPort TS Family
152
LED/button
Color and Light
Pattern Description
Diag LED Amber Blinks during product initialization and factory
reset, using the light patterns below. This LED
should never blink during normal operation. If it
blinks constantly, contact Digi Technical Support.
1-1-1 blinking
amber
Initializing firmware.
1-5-1 blinking
amber
Device configuration has been restored to its
factory defaults.
Other blinking
amber
Contact Digi Technical Support.
Solid amber Device is powered on and ready for operation.
C1 and C2 LEDs Green You can use these LEDs with custom applications
running on the unit.
Reset button N/A Performs equivalent of a power-cycle.
Serial TX Yellow Serial port is transmitting data.
Serial RX Green Serial port is receiving data.
Ethernet Link LED Solid green Ethernet link is up. Will light solid green when an
active LAN connection is plugged into the
Ethernet port.
Ethernet Activity LED Blinking yellow Blinks when active traffic is on the LAN
connection.
ConnectPort TS 16 48VDC
