Edgeport/416
The Edgeport/416 uses a standards-based USB bus for connectivity, unlike many serial card products
that require additional external proprietary hardware to support the same number of devices. This
Edgeport also supplies four USB ports, providing users with a built-in migration path as peripherals
become USB-ready. The converters can be rack mounted and easily daisy-chained together. This
Edgeport converter is available in two models: one with DB25 connectors and one with DB9
connectors. The two models are functionally equal, but differ in the type and placement of the
connectors.

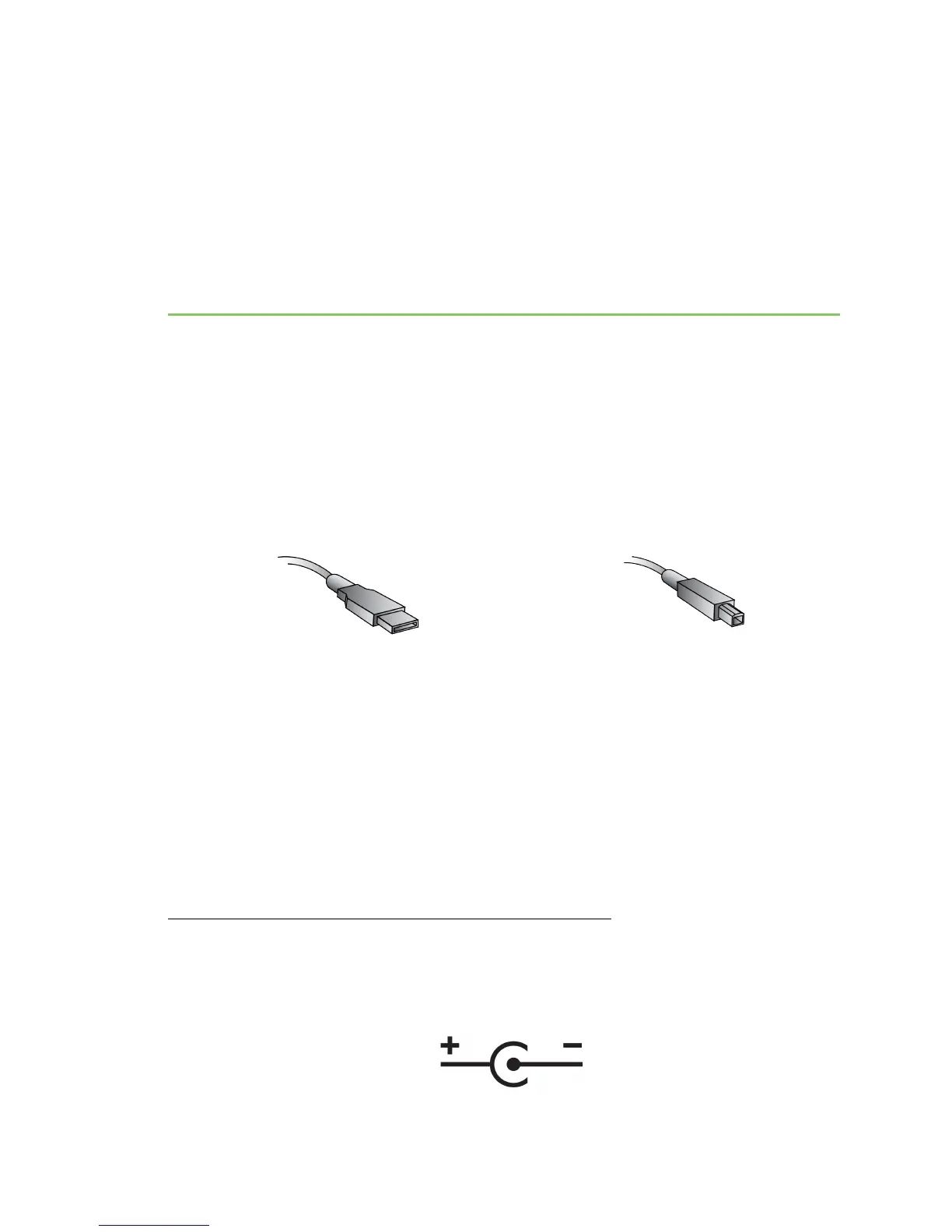

Cabling Edgeport
Type A
Type B
Connect one end of the power supply into the back of your Edgeport and the other end into an AC
outlet.
1
To connect your Edgeport to a PC or Hub, plug the Type A end of the USB cable into the USB port
located in the back of your PC or into an available USB port on a standard hub or into a Digi Hubport.
Plug the Type B end of the USB cable into the back of the Edgeport/416.
To connect a USB device to your Edgeport, plug the Type A end of the USB cable into one of the
Edgeport’s USB Type A slots and the Type B end of the USB cable into the device (such as a Rapidport
or Hubport ).
If the drivers are not already installed, go to Edgeport driver installation.
1
Power to the Edgeport-DB25 and Edgeport-DB9 may be supplied by a UL Listed Direct Plug-In Power
Unit or Information Technology Equipment Rated Power Unit rated 5 VDC, at least 2.9 A if used in the
U.S. and Canada or a power supply with + - similar rating and approved by your local safety code if it is
used elsewhere.
For polarity, see diagram to the right.
Edgeport USB Expansion Modules Installation Guide
8
