WR44 Series Installation Guide
14
4 Programmable IO Signal Lines
The auxiliary power connector has two programmable signal lines. One is an input line,
the other can be configured as either an input line or an output line. The mode of
operation of the input/output line is configurable through the CLI.

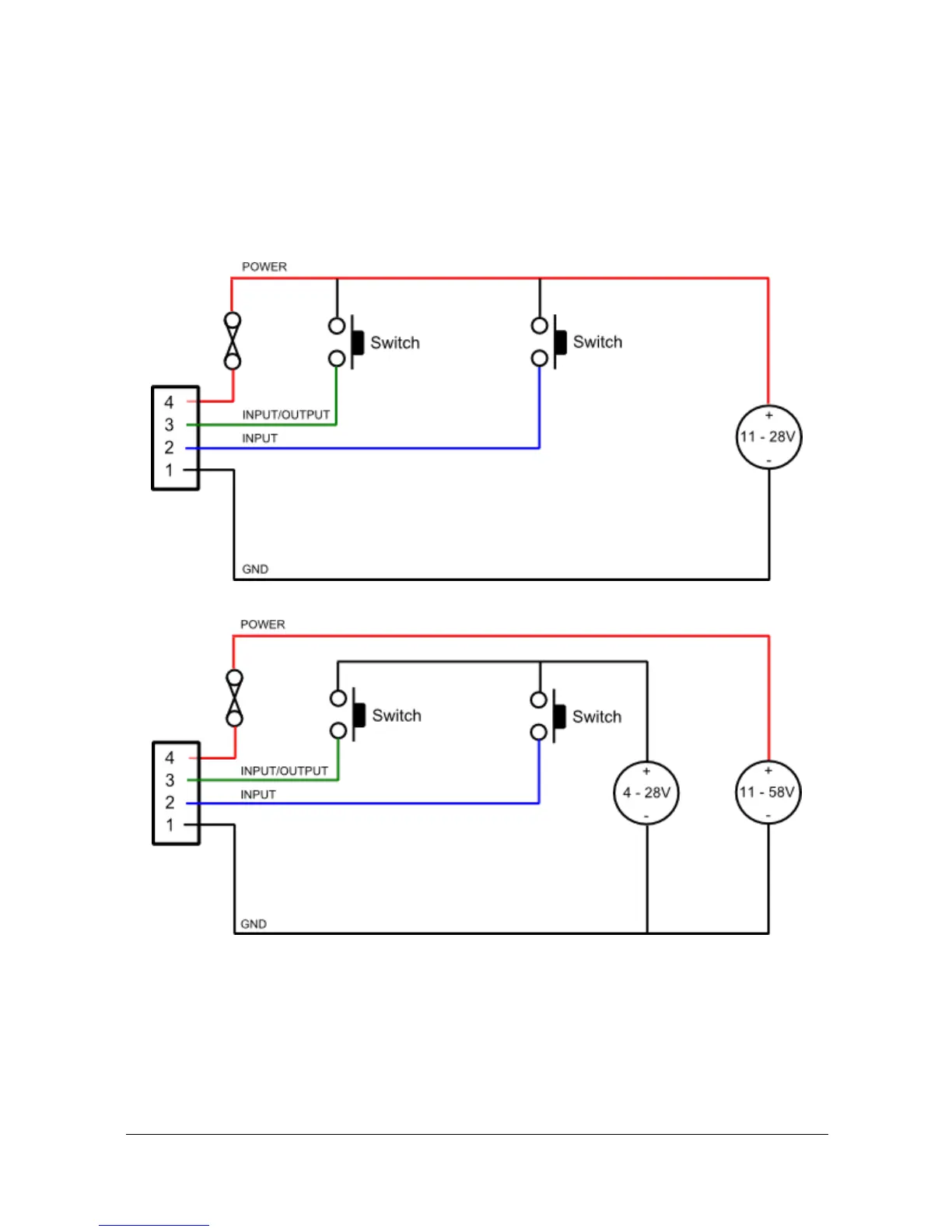

The signal lines can be wired as shown in the following diagrams
2 Inputs, Supply Voltages up to 28V DC
2 Inputs, Supply Voltages up to 58V DC
