8
th

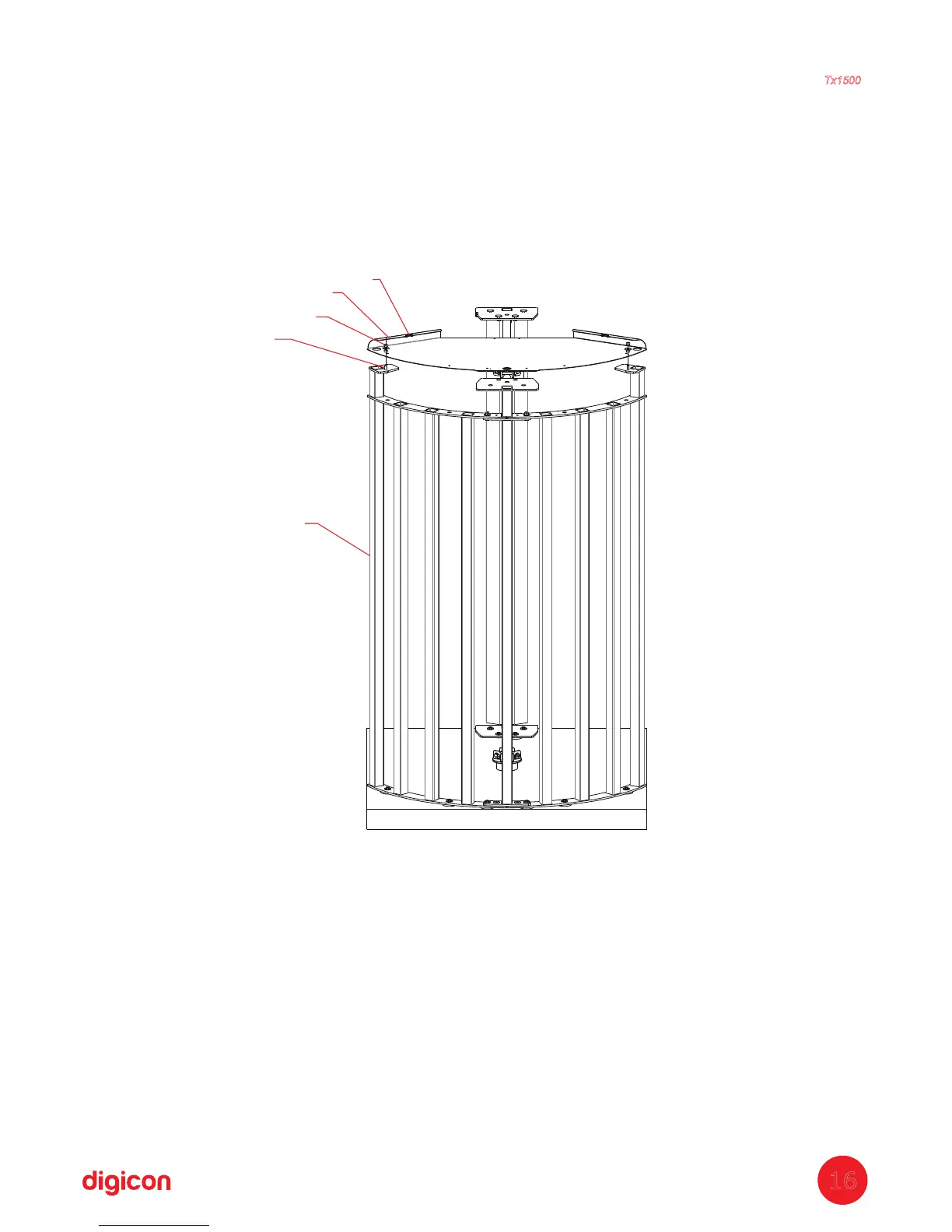

tep: Fixing the roofS
a. Place the roof over the side (P23 or P48);
b. Screw only the edges of the roof, using in each fixation 2 washers (P7), screw
(P26), and nut (P18). The center will be fastened later, alongside the coverage.
Obs.: Place the screw from the bottom upwards.
Quantity of parts used in this stage:
 P1
= 1x - Roof
 P7 = 4x - D=30,5 x 10,5 x 3mmWasher
 P18 = 2x - M10nut
 P26 = 2x - M10 x 30Hexagonal head screw
 P23 = Side assemble with rods
 P48
= Side assemble for glass
P1
P18
P7
P26
P23 OR P48
