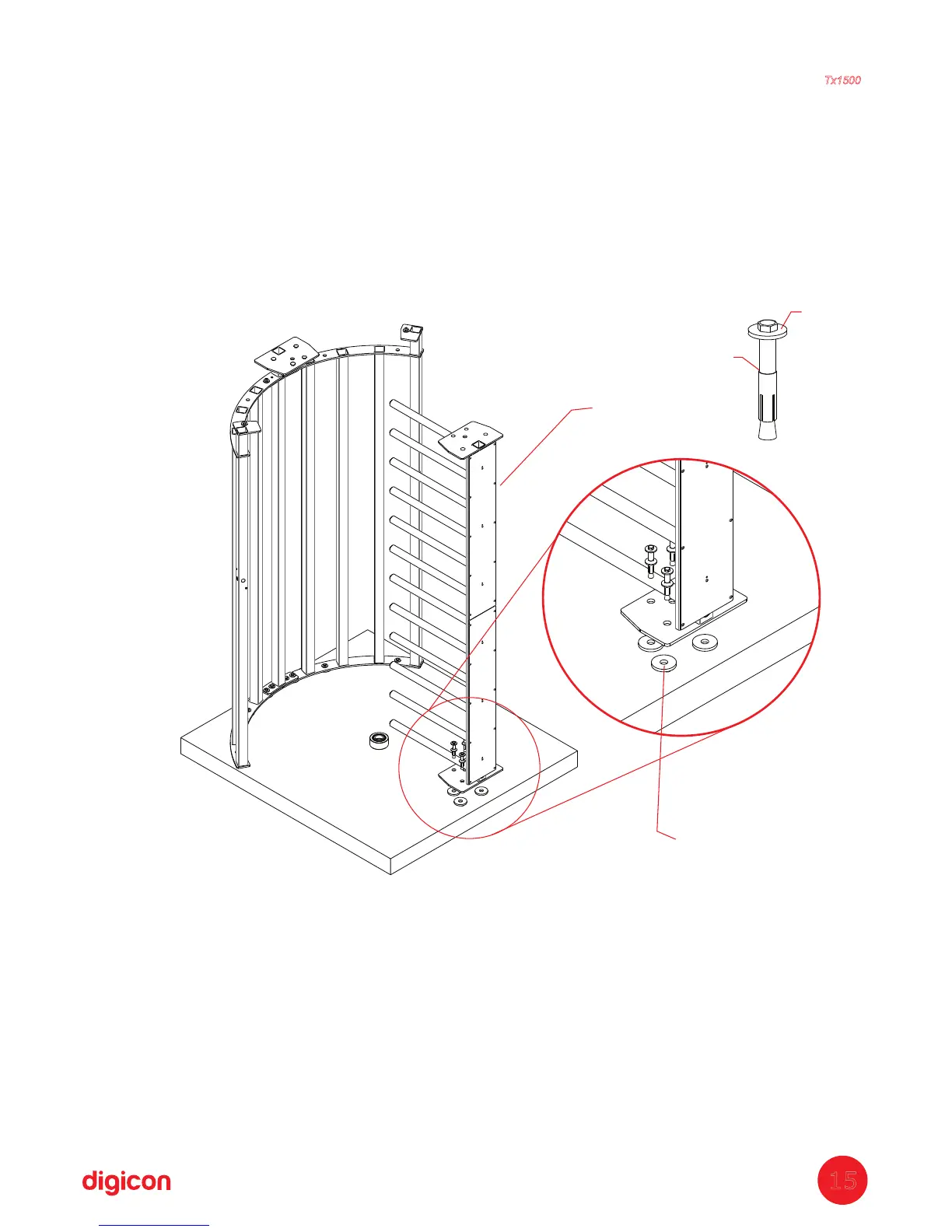

tep: Fixing the stationery armS
a.
Set the coincident flanges (P22) in the holes of the floor.
b. Set the stationery arm (P24) over the flanges and coinciding holes;
c. Replace the fastener's washer (P21) by the washer (P7);
d. Place the fasteners (P21) in all fixing points;
e. Level the rod and wedge the base with washers, if correction is necessary;
f. Fasten all the screws.
e. Level the column and wedge it with washers, if necessary;
Quantity of parts used in this stage:
 P7
= 4x - D=30,5 x 10,5 x 3mmWasher
 P21 = 4x - fastener
 P22
= 4x - Flange
 P24 = 1x - Stationery arm
