6
th
tep:S

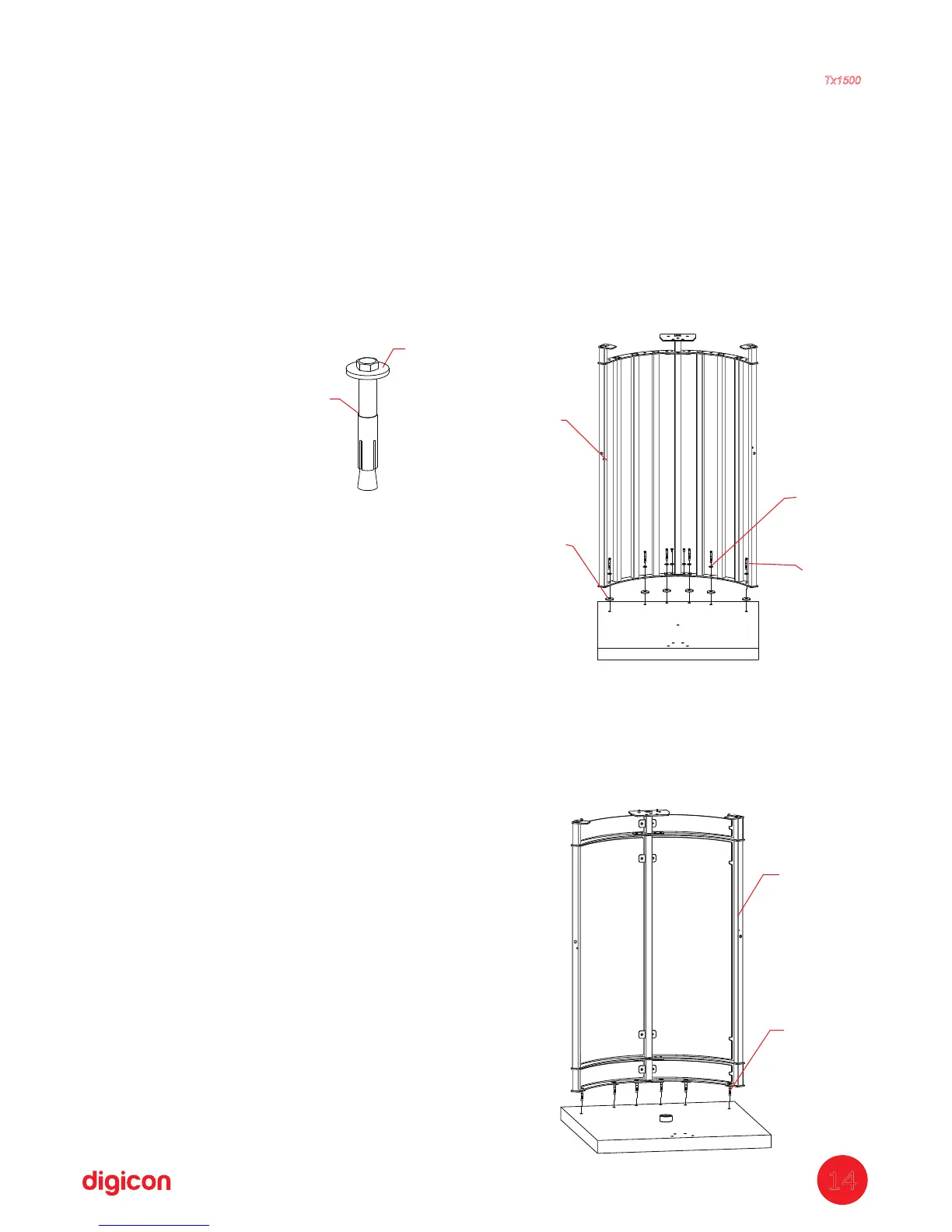

Fixing the sides
Fixing the sides with rods:
a. ;Set the coincident flanges (P22) in the holes of the floor
b. Align the assembly of the sides with grid (P23) over the flanges, coinciding
with
the holes;
c. ;Replace the fastener's washer (P21) by the washer (P7)
d. ;
Place the fasteners (P21) in all fixing points
e. ;
Level the rod and wedge the base with washers, if correction is necessary
f. .Fasten all the screws
Q
uantity of parts used in this stage:
P7
= 6x - Washer D=30,5 x 10,5 x 3mm
P21 = 6x - Fastener
P22 = 6x - Flange
P23 = 1x (Assembly obtained in step 3) -
Assembly of arch's sides
Fixing
glass sides:
a. Align the assembly of the sides to the glasses (P48), coinciding with the holes;
b. Place the fasteners (P21) in all fixing points;
c. Level the rod and wedge the base with washers, if correction is necessary;
d. Fasten all the screws.
Quantity of parts used in this stage:
P21 = 6x -Fasteners
P48
= 1x - Assembly of sides to the glasses
P23
P7
P21
P22
P48
P21
Torniquete
Tx1500
14
P7
P21
