digicon Tx1500 - Page 13

5
th

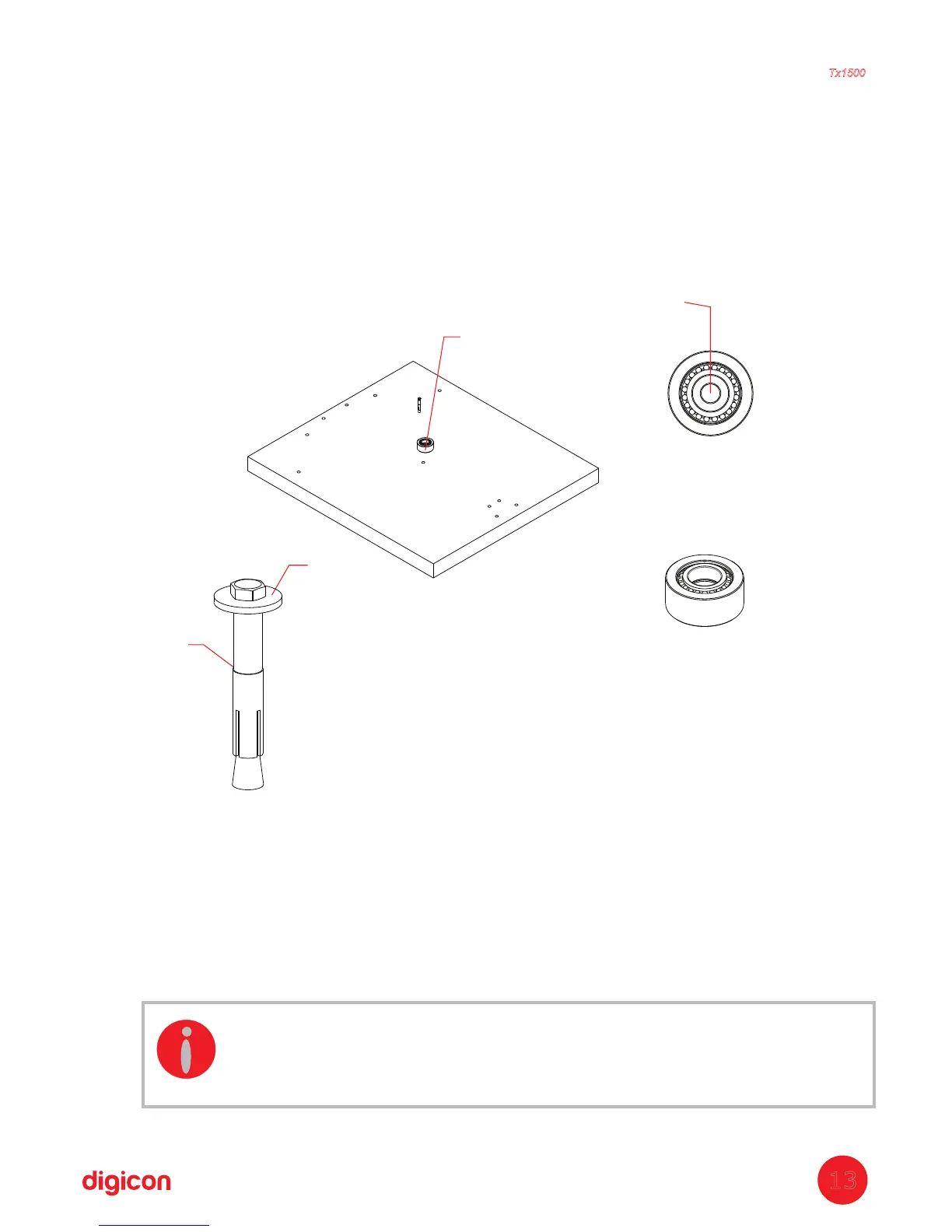

tep:S Fixing the bearing support
a. ;Replace the fastener's washer (P21) for the washer (P7)
b. ;Use the fastener (21); does not accompany the product
c. Place silicone rubber under the bearing; then fix the bearing support (P19) to
the central hole, as shown in the image
.
Quantity of parts used in this stage:
 P7
= 1x - Washer D= 30,5 x 10,5 x 9mm
 P19 = 1x – Bering
 P21 = 1x - Fastener
Torniquete
Tx1500
13
ISOMETRIC VIEW
P19
UPPER VIEW
Screw must be
centralized in
the bearing.
P7
P21
INFORMATION:
 Add more Molykote grease to the bearing since the grease sent is for
transport only.
 Repeat the operation above in the both rotating centers.
