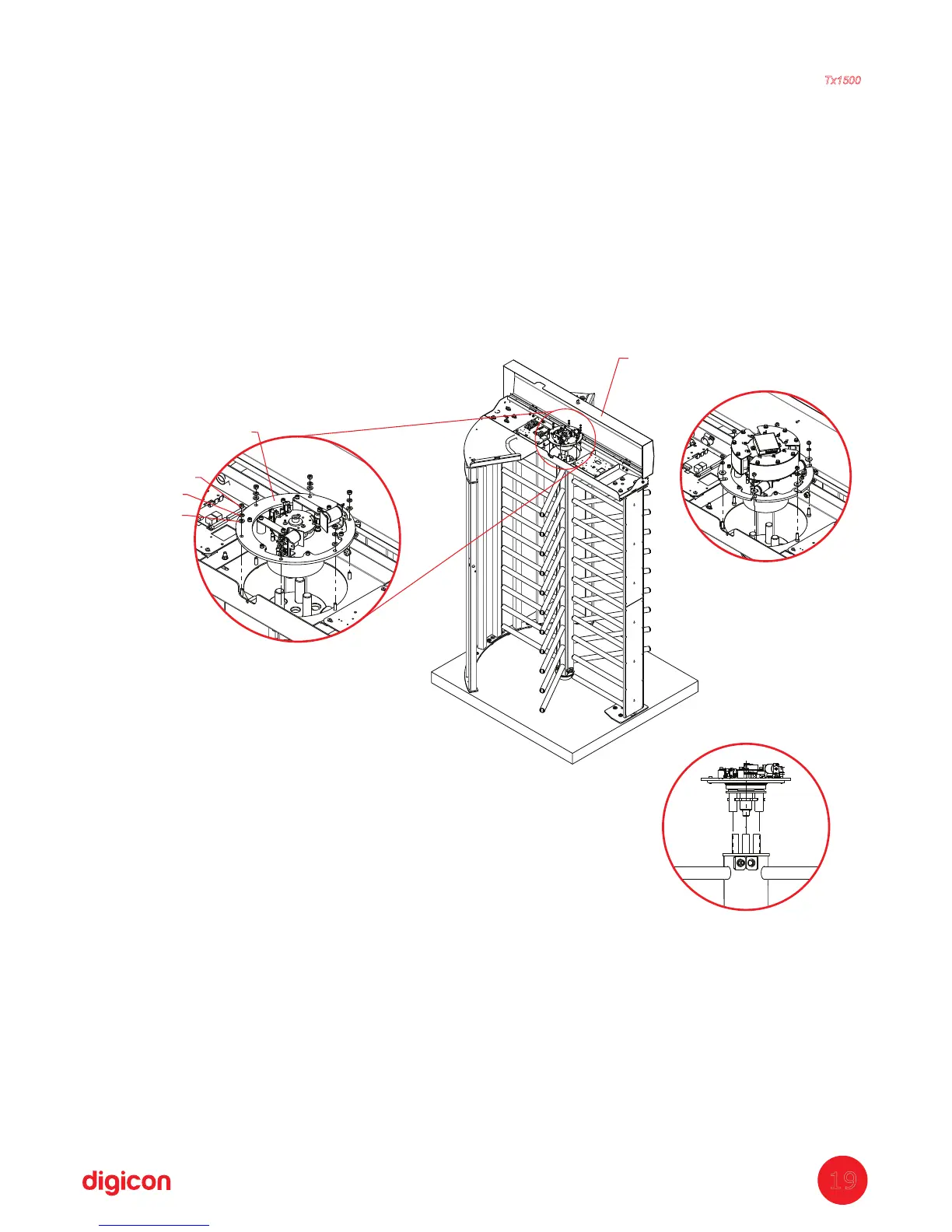

Step: Fitting of locking system
a. Fit the locking system (P29) in the pivoting arm assembly (P28), maintaining the
arms' alignment, as seen in the 10 step; fit it in the coverage (P27);
th
b. Fit the locking system (P29) with washer (P30), spring washer (P31), and nut
(P32). 6 fixings;
c. After the locking system (P29) is fixed (and only then), rotate the pivoting arm
several times to settle the bearing supports and fasten all the screws in the pivoting
arm assembly (P28).
Quantity of parts used in this stage:
P29
= 1x - Locking system
P30 = 6x - D6Flat washer
P31 = 6x - D6Spring washer
P4 = 6x - M6Nut
P29
P4
P31
P30
P27
Torniquete
Tx1500
19
Locking system
Disk with ablong
Stainless steel
turnstile
