Pro Tools Hardware Settings
In the Hardware Settings dialog, Pro Tools lets
you set the default sample rate and clock source
for your system, as well as a range of controls
specific to each type of audio interface.
Default Sample Rate
The Sample Rate setting appears as the default
sample rate when you create a new session.
(This setting is available in the Hardware Setup
dialog only when no session is open.)
To change the default Sample Rate:
1 Choose Setup > Hardware.
2 Select the sample rate from the Sample Rate
pop-up menu.
3 Click OK.
Clock Source
The Pro Tools Hardware Setup dialog lets you se-
lect the Clock Source for the system.
Internal Use this setting if you are recording an-
alog signals directly into Mbox 2 Pro. When set
to internal, Mbox 2 Pro provides four channels
of input (analog only).
S/PDIF Use this setting to record or listen to
Mbox 2 Pro S/PDIF inputs connected to an ex-
ternal digital device. This setting will synchro-
nize Pro Tools to that digital device.
Word Clock Use this setting to clock Pro Tools LE
to a Word clock source connected to the
Mbox 2 Pro Word Clock In port.
To select the Clock Source:
1 Choose Setup > Hardware.
2 Choose the clock source from the Clock
Source pop-up menu.
3 Click OK.
Configuring I/O Setup
Using the I/O Setup dialog, you can label
Pro Tools LE input, output, insert, and bus sig-
nal paths. The I/O Setup dialog provides a graph-
ical representation of the inputs, outputs, and
signal routing of the Mbox 2.
Pro Tools LE has default I/O Setup settings that
will get you started. Use the I/O Setup dialog
only if you want to rename the default I/O
paths.
You can change the sample rate when creat-
ing a new Pro Tools session by selecting a
different sample rate in the New Session
dialog. (Refer to
the Pro Tools Reference
Guide for details.)

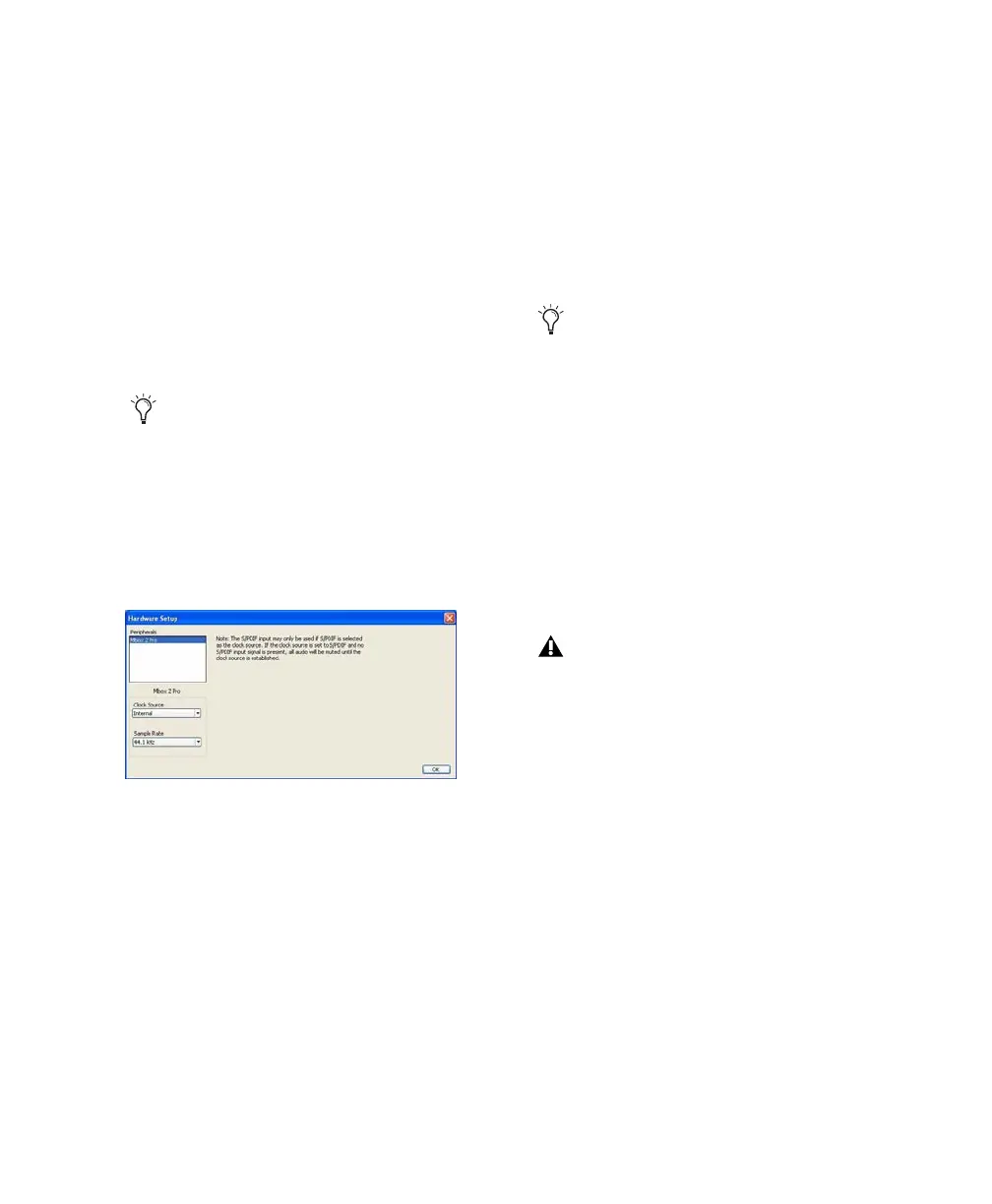

Hardware Setup dialog for Mbox 2 Pro
S/PDIF input is only available when S/PDIF
is the Clock Source.
Your digital input device must be connected
and powered on for Pro Tools to synchro-
nize to it. If your input device is not powered
on, leave the Clock Source set to Internal.
