DigiDesign Mbox 2 Basic Guide

Importing Audio from a CD
11
10 Drag the audio file from the Workspace
browser to the Track List in the Edit window to
import the file to a new audio track.
To play back the new track:
1 In the Transport window, click Return to Zero
to go to the beginning of the track.
2 On the front of the Mbox 2, turn the Mix con-
trol fully right to Playback.
3 Click Play in the Transport window to begin
playback.
4 Click Stop in the Transport window or press
the Spacebar to stop playback.

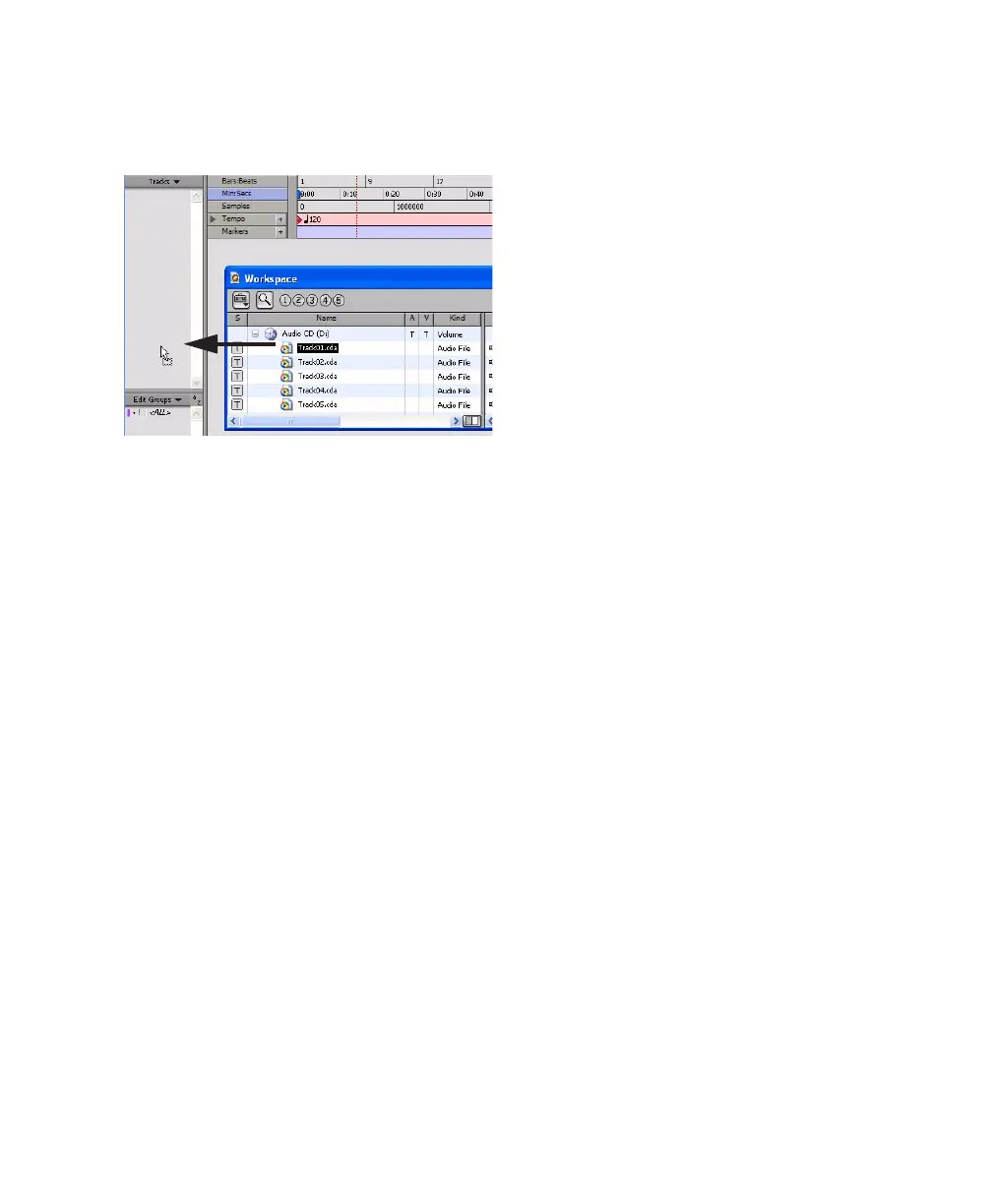

Dragging an audio file from the Workspace browser to
the Edit window Track List

DigiDesign Mbox 2 Specifications

General

Audio Interface Type	USB
Number of Inputs	4
Number of Outputs	2
Phantom Power	Yes
Sample Rate	48 kHz
Bit Depth	24-bit
MIDI I/O	Yes
Analog Inputs	2 x XLR/TRS Combo, 2 x 1/4" TRS
USB	USB 1.1
Software Included	Pro Tools LE
Operating System Compatibility	Windows, macOS
Analog Outputs	2 x 1/4" TRS
Digital Inputs	S/PDIF
Digital Outputs	S/PDIF
Headphone Output	1 x 1/4" TRS
