Expanded Systems Guide18
Digidesign and SBS 7-Slot
Expansion Chassis
(Macintosh Only)
Digidesign 7-Slot Expansion Chassis
The Digidesign 7-Slot Expansion Chassis is iden-
tical to the SBS model DD007-R. For compatibil-
ity and configuration details, refer to the infor-
mation that pertains to that model.
Slot Layout for Digidesign 7-Slot
Expansion Chassis
The Digidesign 7-Slot Expansion Chassis has
slots that are numbered sequentially (1–7), left-
to-right, from the front.
The Digidesign 7-Slot Expansion Chassis does
not have a Backplane Controller slot. It instead
has a built-in chassis controller with a connec-
tor on the back of the expansion chassis.
Configuring the Digidesign 7-Slot
Expansion Chassis
Connecting the Expansion Chassis
Install the chassis host card:
1 Turn off the expansion chassis, your com-
puter, and any peripherals. Leave your com-
puter’s power cable plugged in so the computer
is grounded.
2 Open the computer case. For additional de-
tails on installing a card in your computer, refer
to its documentation.
3 Install the Digidesign Host Card in the lowest
numbered slot in your computer. This will be
the slot closest to the graphics card.
4 Attach a 2- or 4-foot expansion chassis cable
to the host card.
5 If using a SCSI HBA, install it in the highest
numbered remaining slot in your computer.
Install the chassis controller card:
1 Attach the chassis cable to the connector on
the back of the expansion chassis.
2 Attach the other end of the expansion chassis
cable to the controller card.
The Digidesign Expansion Chassis 7-slot is
supported on Mac OS X.
SBS Technologies was previously called
“Bit 3.”

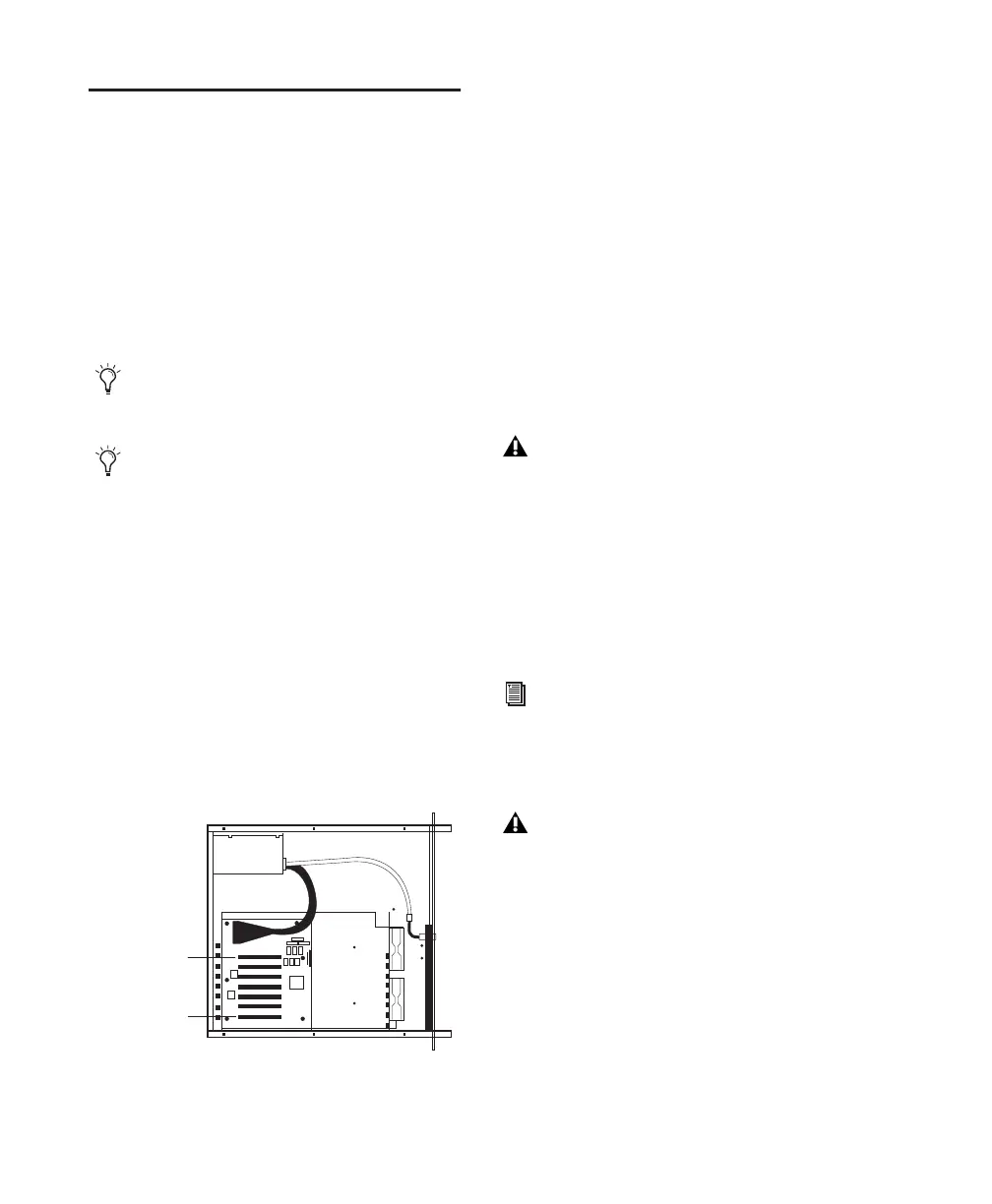

Slot numbering for Digidesign 7-Slot Expansion Chassis
Slot 7
Slot 1
Before removing cards from their antistatic
bags or handling any card, discharge any
static electricity that may be on your clothes
or body by touching a grounded metal sur-
face (such as the power supply case inside
your computer).
Refer to your computer’s documentation to
verify slot order.
6-foot expansion chassis cables are not sup-
ported.
Expanded Systems Guide.book Page 18 Friday, March 26, 2004 6:47 AM
