DIGIGRID MGB/MGO
1. HARDWARE AND CONNECTORS
MADI 1 & MADI 2 – Either BNC (MGB) or optical (MGO). Connect to any MADI device.
Waves SoundGrid Port – Connect to SoundGrid Network.
Word Clock Input – Connect to external word clock source.
5V Power Input – Use only DiGiGrid-supplied or approved external power supply.

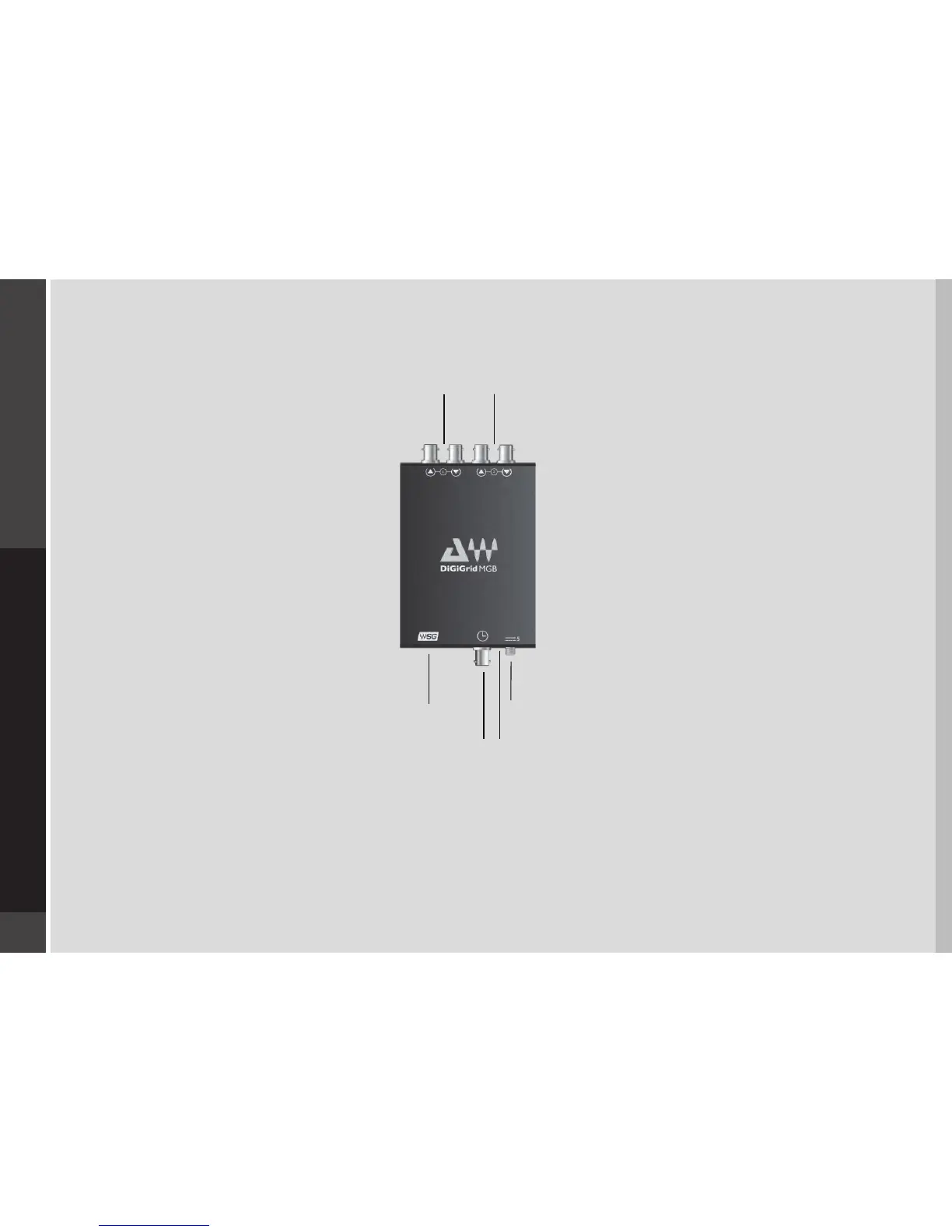

Word Clock Input
MADI 1 I/O
5V DC Power Input
Waves SoundGrid
Network Port
MADI 2 I/O
Status LED
