DIGISYNTHETIC DS216A - Front Panel Description

<BACK
NEXT>
MENU
ENTER
GAIN QUIT
MUTE MUTE
5
6
--A--A --B--B
MUTE MUTE MUTE MUTE
1
2
3
4
CLIP
LIMIT
-3
-6
-12
-24
-30
CLIP
LIMIT
-3
-6
-12
-24
-30
CLIP
LIMIT
-3
-6
-12
-24
-30
CLIP
LIMIT
-3
-6
-12
-24
-30
CLIP
LIMIT
-3
-6
-12
-24
-30
CLIP
LIMIT
-3
-6
-12
-24
-30
CLIP
LIMIT
-3
-6
-12
-24
-30
CLIP
LIMIT
-3
-6
-12
-24
-30
CLIP
LIMIT
-3
-6
-12
-24
-30
CLIP
LIMIT
-3
-6
-12
-24
-30
CLIP
LIMIT
-3
-6
-12
-24
-30
CLIP
LIMIT
-3
-6
-12
-24
-30
CLIP
LIMIT
-3
-6
-12
-24
-30
CLIP
LIMIT
-3
-6
-12
-24
-30
POWER
DIGITAL SPEAKER PROCESSOR

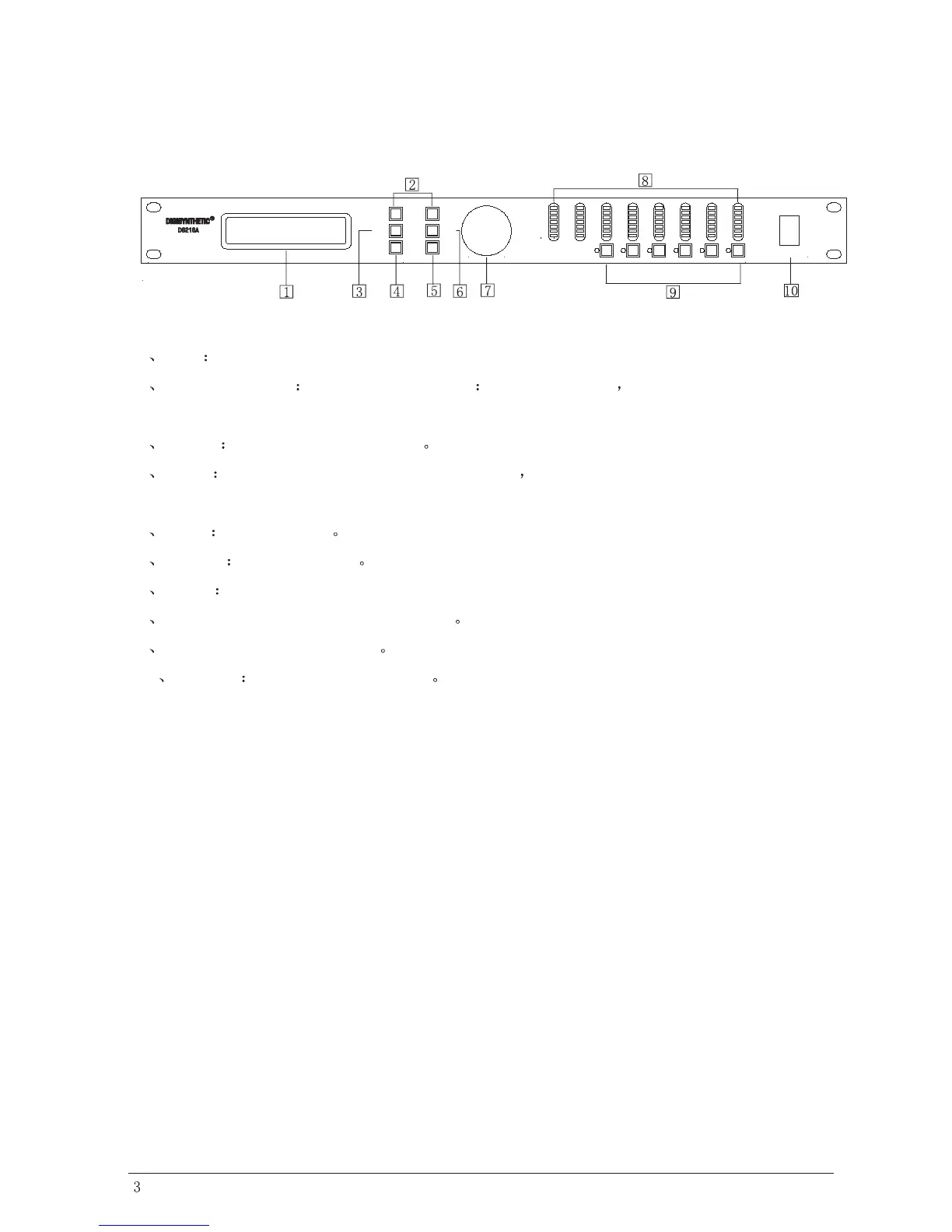

1 LCD display menu and parameter
3 MENU menu adjustment button
4 GAIN gain and parameter adjustment button push the button again to switch the
channel.
5 QUIT quit the menu
6 ENTER confirm button
7 Param parameter switch and adjustment.
8 Input,Output input/output LED meter
9 Output channel mute botton
10 POWER ON/OFF power switch
2 <BACK/NEXT> direction shift button switch the menu adjust parameter value in
some menus.
FRONT PANEL
