DIGISYNTHETIC DS216B - Hpf & Lpf; Peq; Limiter

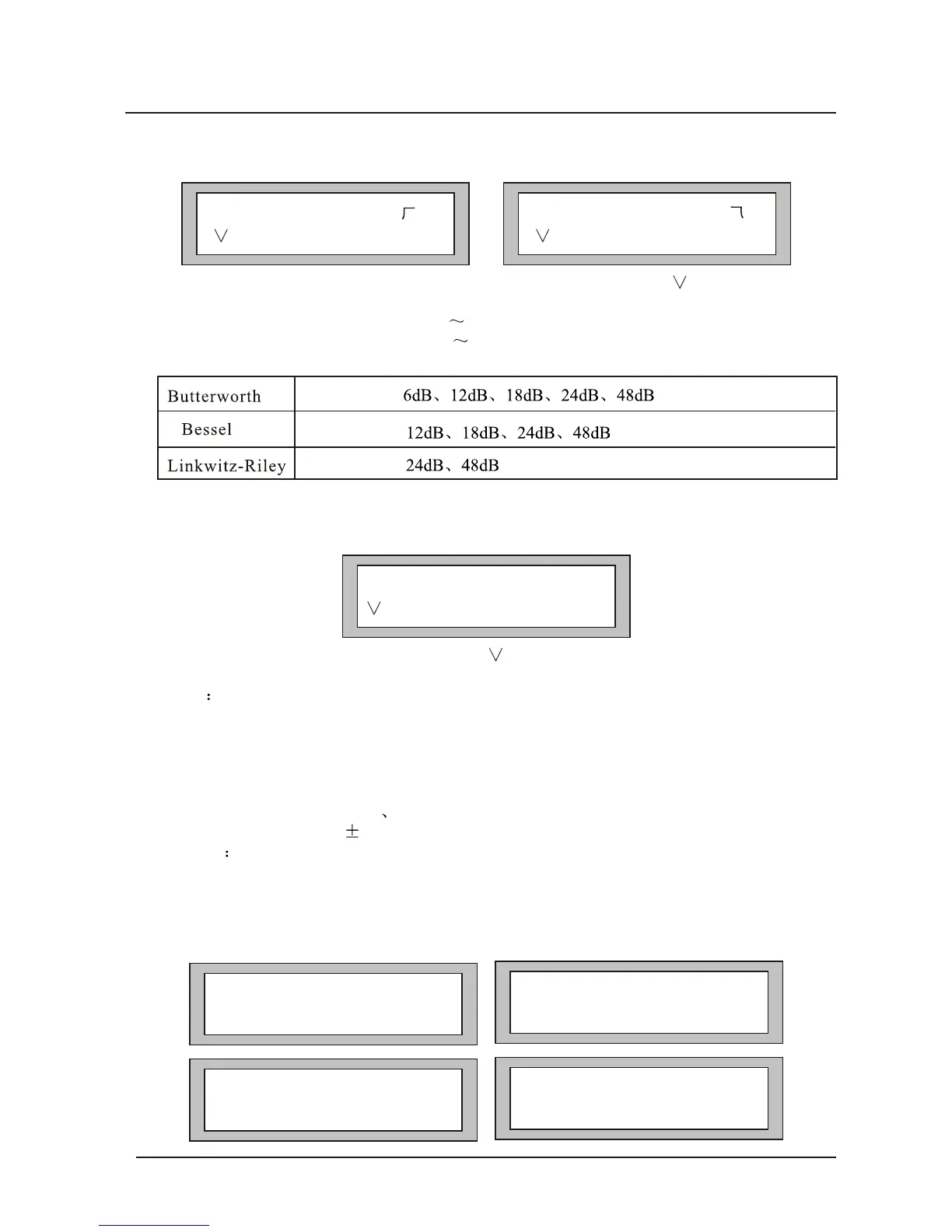

E. HPF & LPF: each channel include separate High Pass and Low Pass filter.
Push "Push_Param" button to change parameter indicator " " position, rotate
"Param" button to change parameter.
Highpass: frequency range: 10Hz 16.0KHz
Low pass: frequency range: 35Hz 22.0KHz
Selectable slope:
Each channel includes 5 bands PEQ.
F. PEQ
Push "Push_Param" button to move " " indicate parameter, rotate "Param" to
adjust parameter.
Note under PEQ menu, "Enter" is used as "Bypass".
" " means
" " means
" " means
" = " means PEQ Bypass
Freq: 20Hz~20.0kHz (360 ISO)
Q value: 0.4~128 (Hishelf Loshelf)
Gain: -12dB~+12dB ( 0.1dB)
Hishelf frequency: 1.0K~20.0kHz
Loshelf: frequency: 20.0Hz~1.0kHz
Note: when using Hishelf, Loshelf, set Gain=0.0dB firstly, then change Qvalue to
Hishelf/Loshelf.
G. Limiter
² PEQ
} Loshelf
{ Hishelf
Op2 LOW PEQ:2 ²
2.00KHz Q=3.0 +0.0dB
Op3 Mid limiter
Level=0.0dB
Op3 Mid limiter
hold=0.0ms
Op3 Mid limiter
ATTACK=12ms
Op3 Mid limiter
Decay=120ms
Op1 High HPF
4.00KHz Butwth 24dB
Op1 High LPF
4.00KHz Butwth 24dB
77
Operation Instruction
