Digital-Ally DVM-250 Plus - DVM-500 Plus; DVM-750

VuLink Operation & Installation Guide 860-00198-00 REV A
Digital Ally, Inc. | Model-Specific Wiring Diagrams
4-2

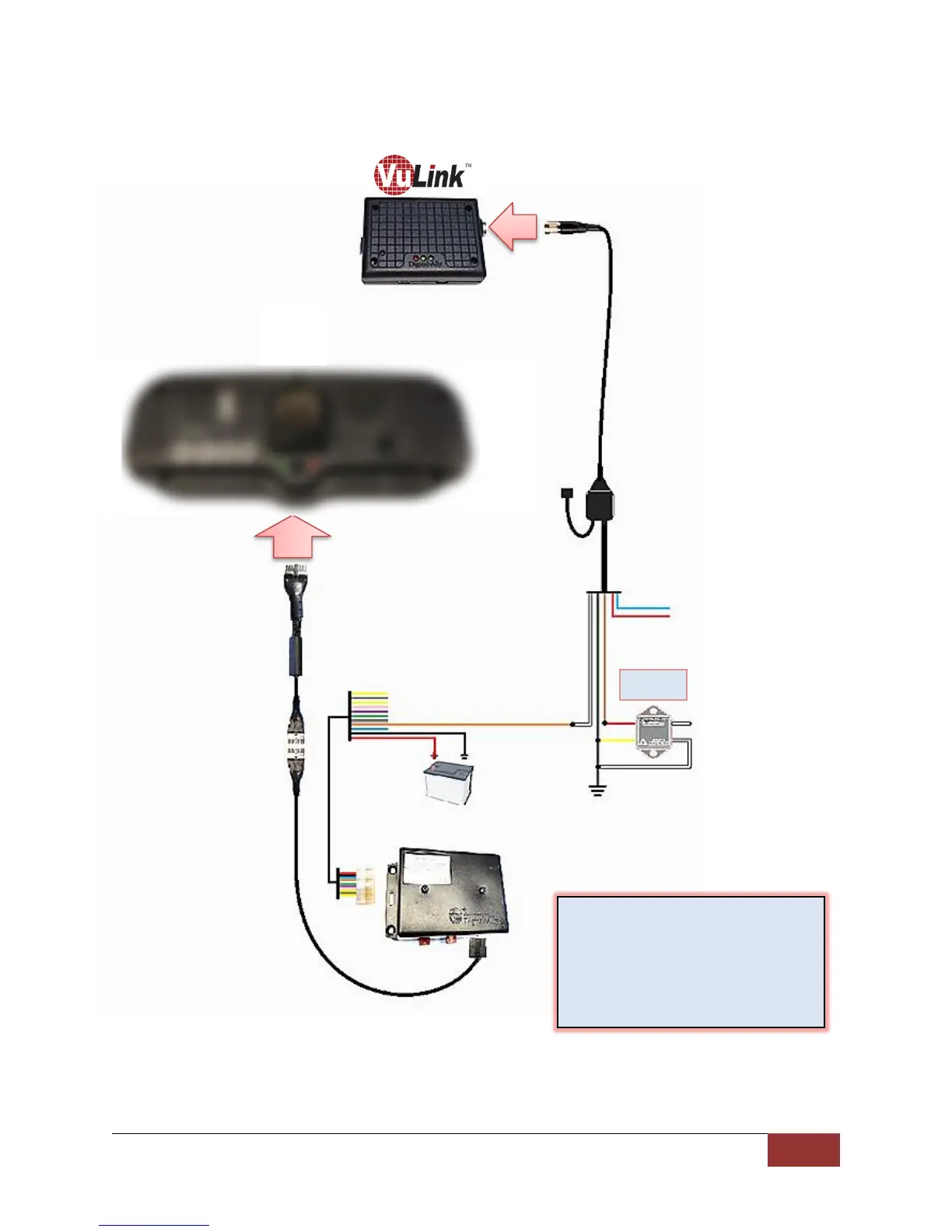

DVM-500Plus / DVM-750
VuLink Relay Wiring
WHITE = connect to Emergency lights
WHITE = connect to chassis ground
YELLOW = connect to chassis ground
RED = connect to BROWN wire on
VuLink base cable
BLUE = +12VDC Switched Ignition
RED = +12VDC Battery
WHITE = Emergency Light Input
WHITE = Tie to ground
BLACK = Chassis Ground
Connect WHITE wire from
VuLink Base Cable to
ORANGE wire of I/O BOX
input sensor cable
Relay
(see
belo
w)
DVM
VuLink Base Cable
008-01456-00
I/O Box
DVM
NC
