Digital-Ally DVM-250 Plus - DV-440 Ultra

VuLink Operation & Installation Guide 860-00198-00 REV A
Digital Ally, Inc. | Model-Specific Wiring Diagrams

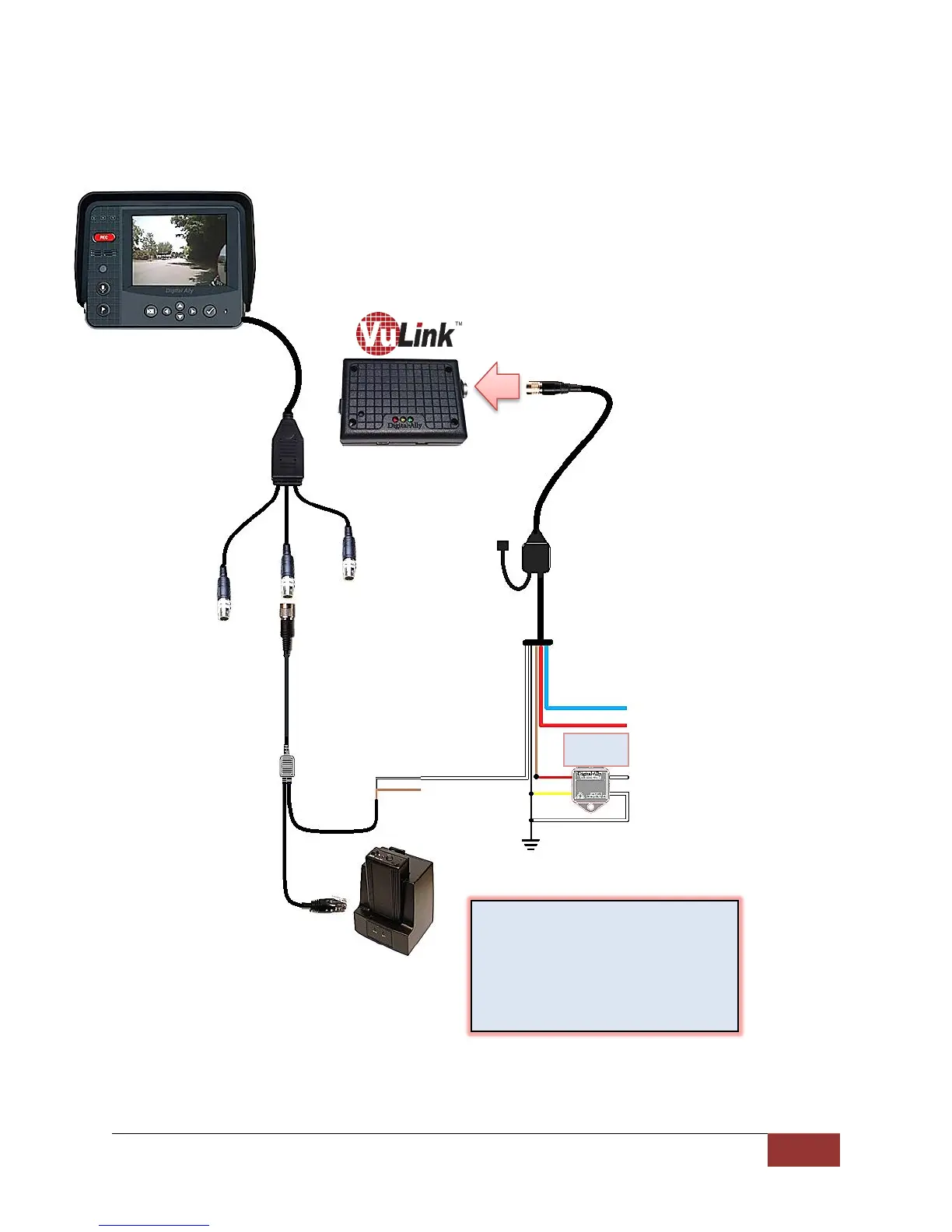

4-4
DV-440Ultra
BLUE = +12VDC Switched Ignition
RED = +12VDC Battery
WHITE = Emergency Light Input
WHITE = Tie to Ground
VuLink Base Cable
008-01456-00
Connect WHITE wire from
VuLink Base Cable to WHITE
wire of DWM800 sensor cable
VuLink Relay Wiring
WHITE = connect to Emergency lights
WHITE = connect to chassis ground
YELLOW = connect to chassis ground
RED = connect to BROWN wire on
VuLink base cable
Relay
DWM800
Sensor Cable
9 pin
NC
BLACK = Chassis Ground
