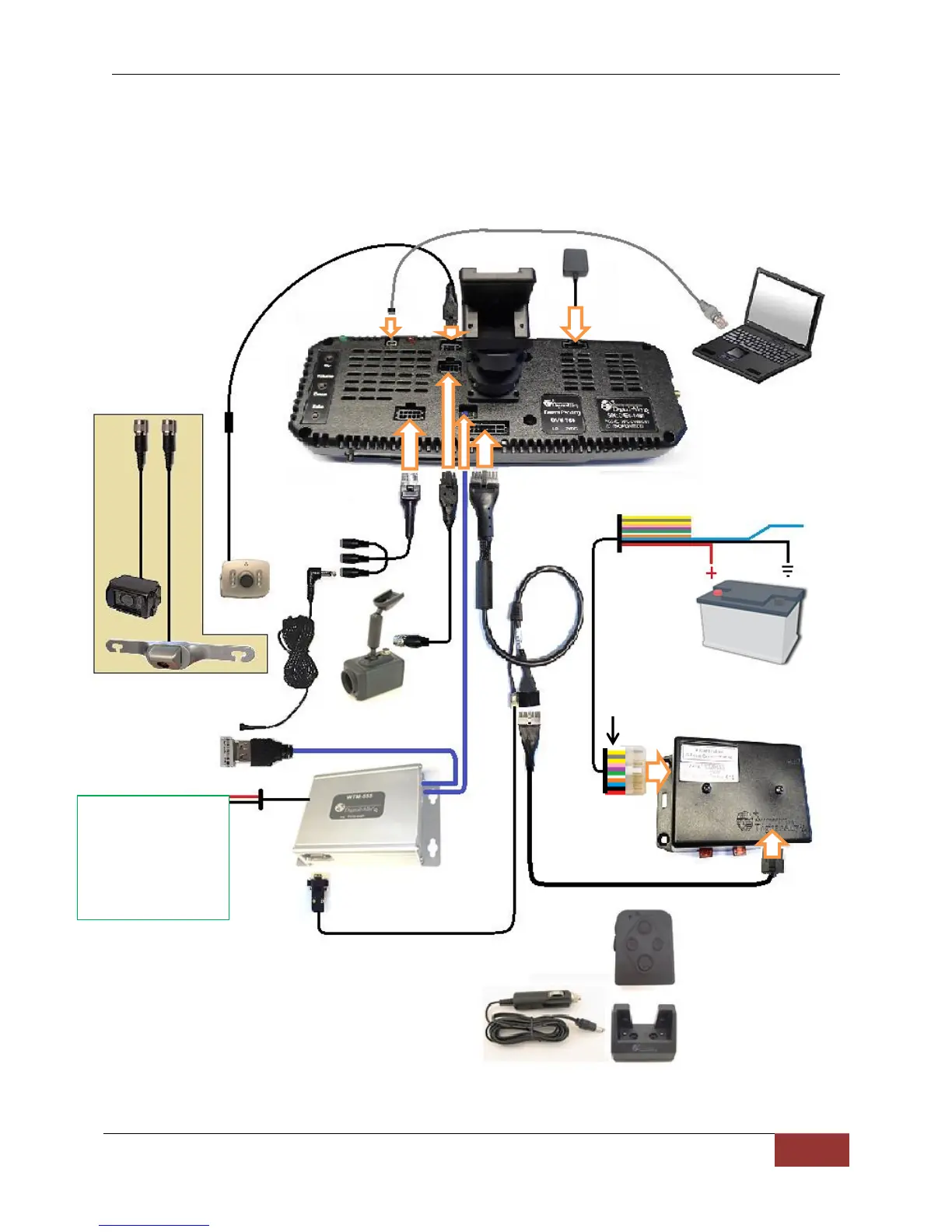

SYSTEM DIAGRAM
GPS Antenna
Ethernet port
used with
optional MDT
interface
Front Camera
WIFI USB Dongle
Optional Backup
Camera (see Page 13)
Constant 12V+ Ground
Interface Box
External Covert Microphone
Wireless Transfer
Module (optional)
Switched
Ignition 12V+
USB1
USB2
Serial
WTM POWER HARNESS
RED = Constant 12V+
WHITE = Switched 12V+
BLACK = Ground
(See WTM-555
installation guide)
Input Triggers
(see page 17)
Vehicle to IF
Box Harness
DVM to I/O Box harness
Voice Vault Wireless Microphone and Charger
Assembly with Cigarette Lighter Adapter
WTM to DVM serial cable
Shown with Optional Wireless
Transfer Module (WTM), Rear
Camera, and Laptop Interface
DVM Y Cable
A/V In
A/V Out
OR
Rear Seat Camera
