DVM-750 Installation Guide 860-0008-00 Rev C
Digital Ally, Inc |DVM-750 Installation Guide

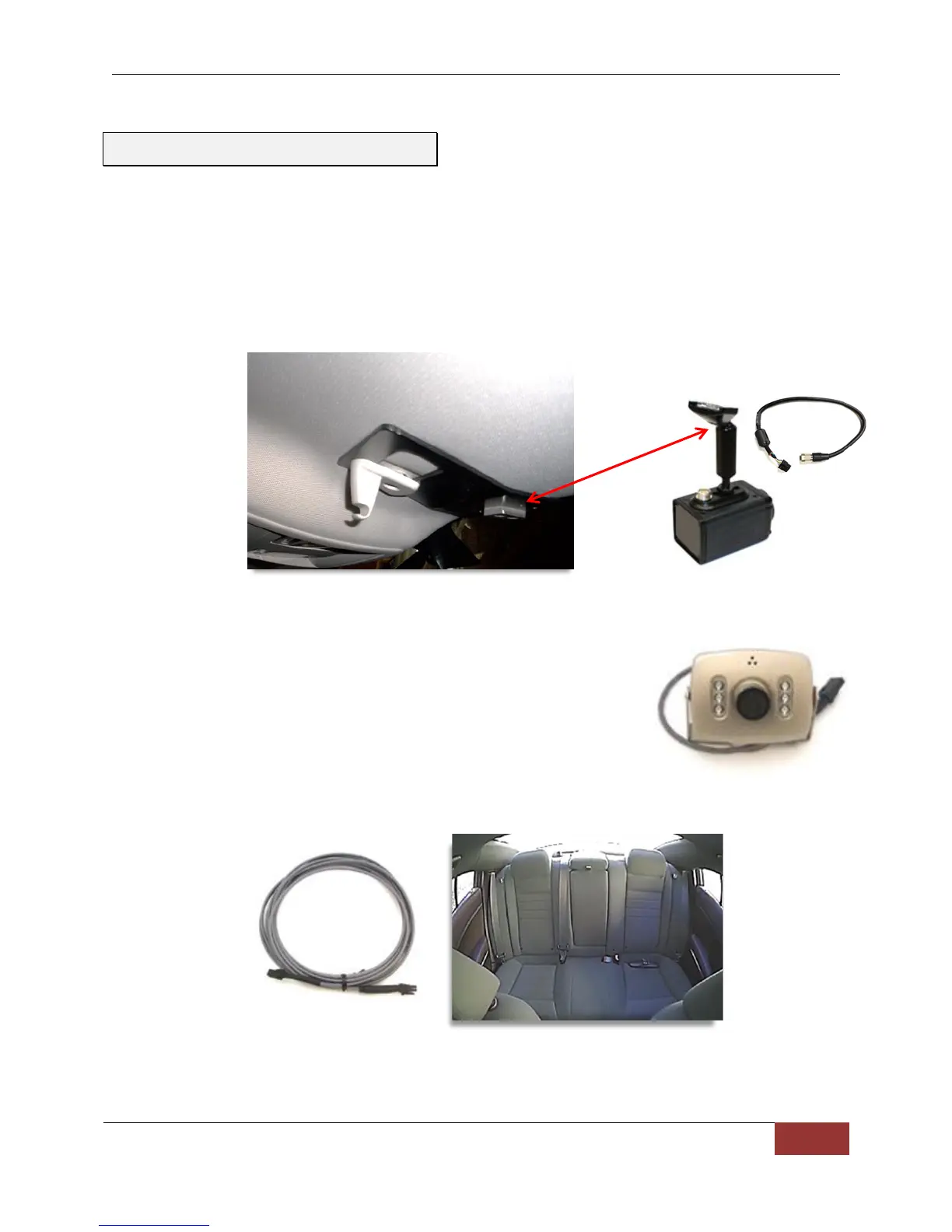

Front Camera
Install the visor mounting plate and then re-install the sun visor clip which holds up the
visor mount. The visor mount has a slot and three sets of screw holes for various
adjustments if necessary. Attach the camera to the plate. The camera can also be
installed onto the windshield by gluing a mounting puck to the windshield.
Rear Seat Camera (optional)
1. Determine a mounting location for the auxiliary rear seat
camera. The example below has the camera mounted in the
center of the cage along the roofline. This gives a wide
angle view of the entire back seat.
2. Route the remaining portion of the camera cable to the
external surface mount camera and connect. Secure extra
cable in the headliner away from any other existing cabling
and/or airbags.
Step 5: Camera Installation
Connect to CAM2
input of DVM
Connect to CAM1
input of DVM
To Next Page
