EDGEVIS HD-IP250 HARDWARE INSTALLATION
ISSUED: 10 NOVEMBER 2020 PAGE 4
Section 1- Basic operations of the unit
The EdgeVis HD-IP250 is a small and robust device, ideally suited for use in
fixed installations for the recording and live streaming of video from a
single IP camera.
Device connectors
The HD-IP250 features integral TVI streaming using an external 4G modem, external Wi-Fi adapter or wired LAN, and
archiving onto externalSSD/HDD. The device supports the connection of one IP camera. Connectors for the HD-IP250

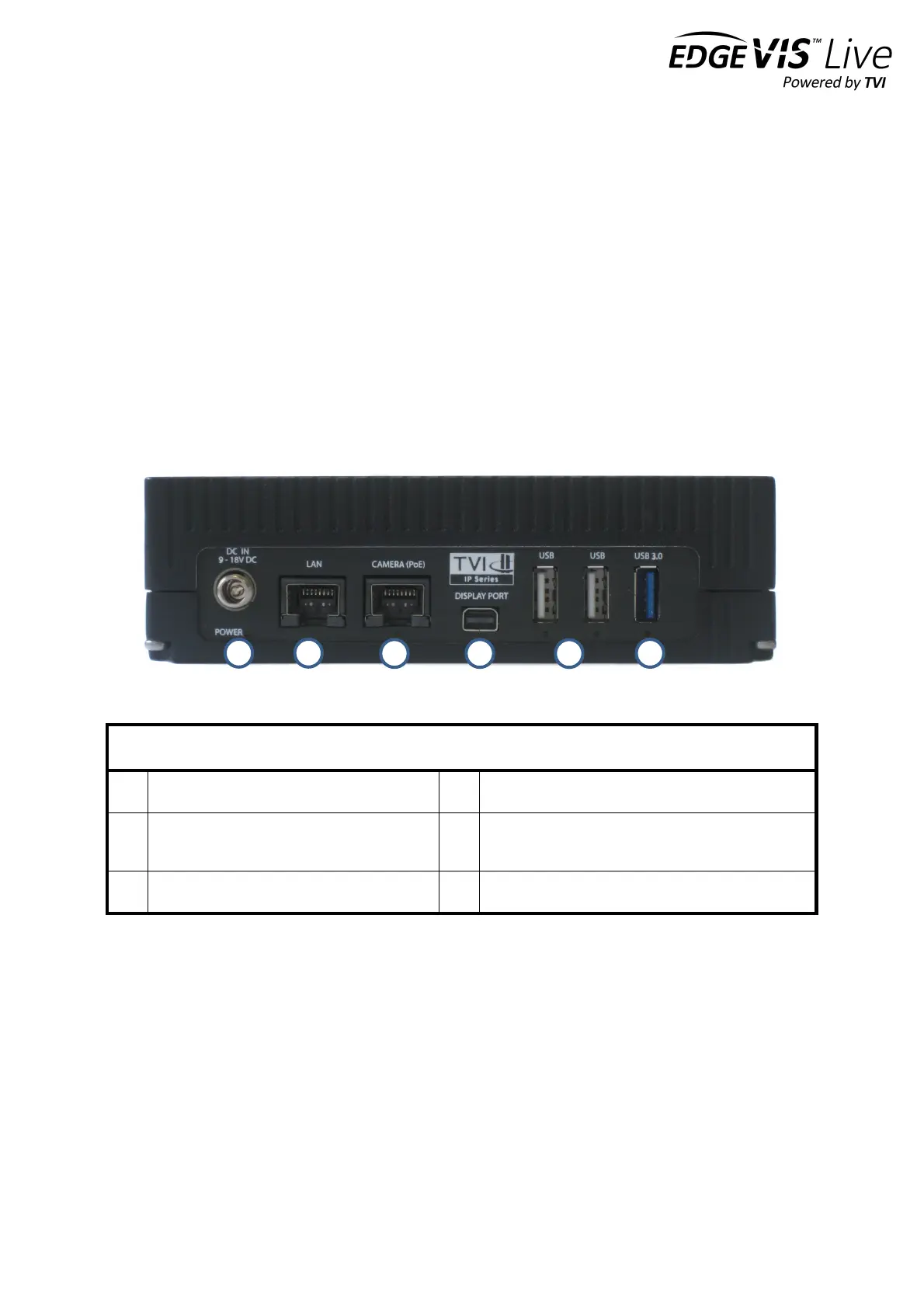

are shown below.
Power input connector (9 – 18V DC)
Mini-DisplayPort video connector – not used.
LAN port (typically for configuration and
communications)
USB ports for Wi-Fi and modem
Camera LAN port (with PoE support)
USB 3.0 port - recommended for external USB storage
The PoE port is a nominal 802.3af (802.3at Type 1) type that can produce 44-57V and supply up to 15.4W. This port
supports Mode A powering (Data and Power shared).
