DIGITAL DELAY Mega 400 - Mounting and Wiring the Unit

14
Mounting the Mega 300/400
For complete viewing of the large LCD, care should be taken when mounting the unit to make sure that the display is
angled towards the driver’s eyes. Before mounting the Mega 300/400, place the box in the desired location and check the
legibility of the display in both day and night conditions. As shown below, the lower the box is placed below eye level, the
more the angle amount needs to increase for viewing.

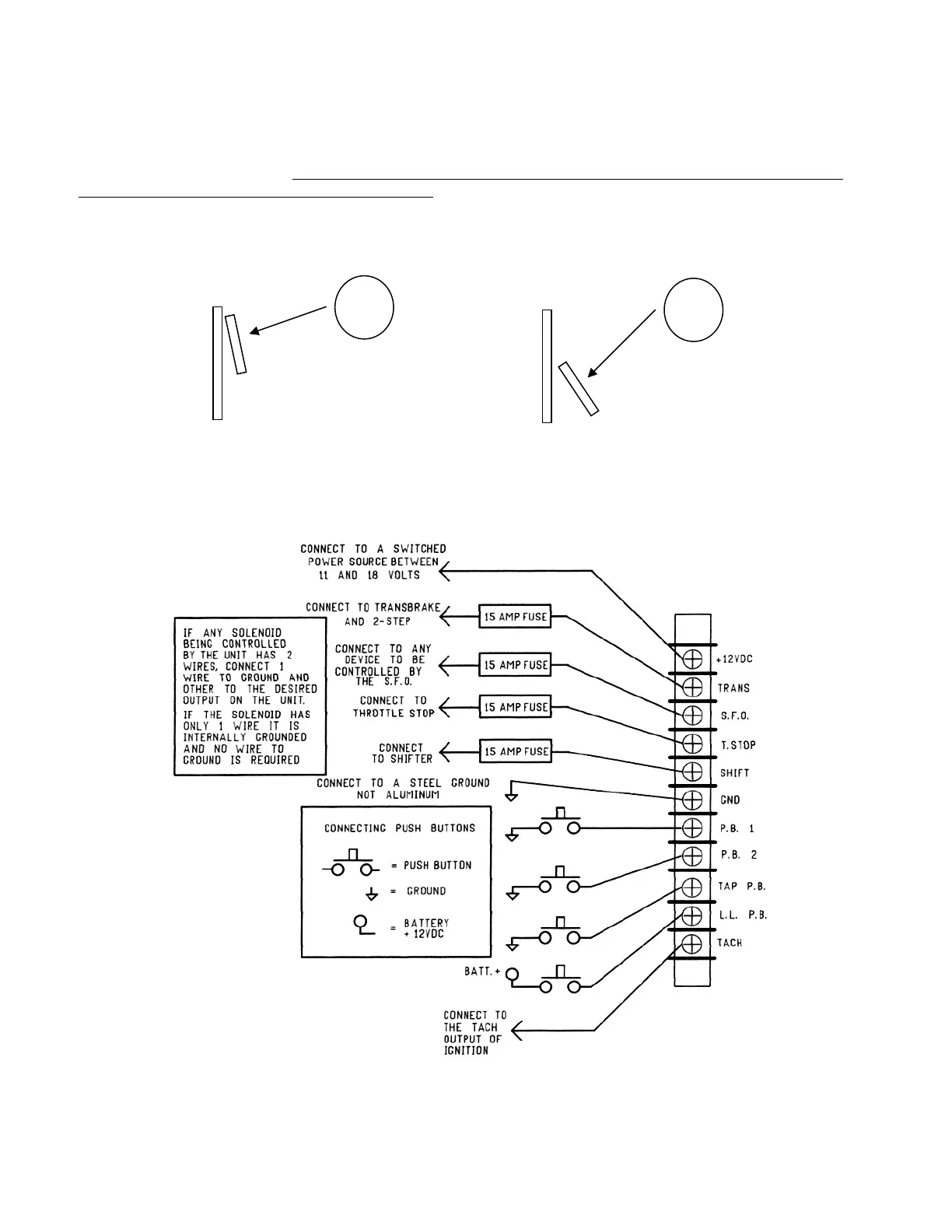

Wiring the Mega 300/400
Dri
ver
D
as
h
Box
Dri
ver
D
as
h
Box
