Mounting the Unit
For complete viewing of the large LCD, care shoul
d be taken when mounting t
he unit to make sure t
hat the display is
angled towards the driver’s eyes.
Before
mounting
the
unit,
place
box
in
the
desired
location
and
check
the
legibility
of
the
display
in
both
day and
night
conditions.

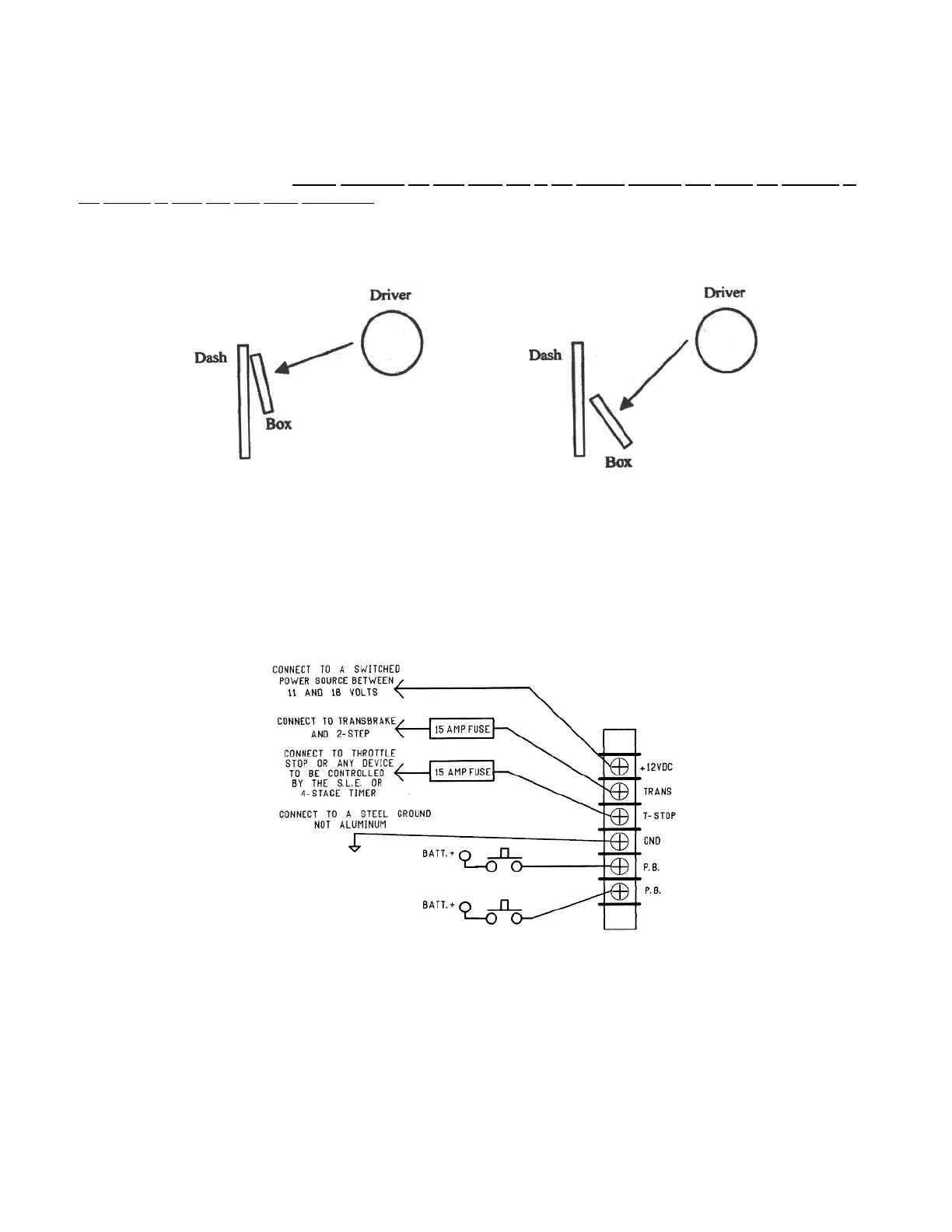

As shown below, the lower the box is
placed below eye level, the more the
angle amount needs to i
ncrease for viewing.
Wiring the Unit
8
