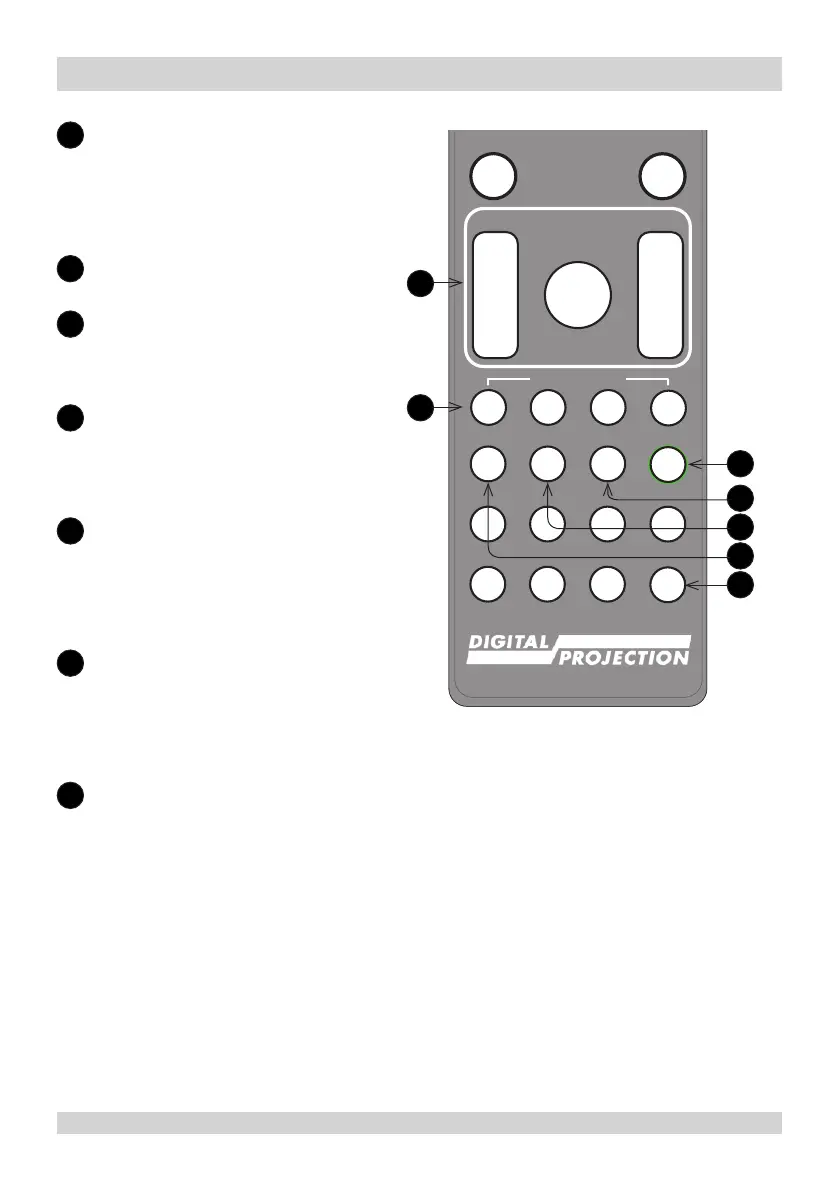

LENS adjustment
FOCUS IN / OUT: adjust focus.
SHIFT: press and hold this button,
then use the Navigation arrow
buttons to move the lens.
ZOOM IN / OUT: adjust zoom.
12
USER PRESET A, B, C, D
Load user presets.
13
ALT
Press and hold this button to
access alternative functions for all
buttons with a green label.
14
DVI / GAMMA / numeric input 3
Select the DVI input.
Use with ALT to switch to the next
Gamma value:
...1.0, 1.8, 2.0, 2.2, 2.35, 2.5...
15
HDMI 2 / CON / numeric input 2
Select the HDMI 1 input.
Use with ALT to bring up the
Contrast control, then adjust the
value with the LEFT and RIGHT
arrow buttons.
16
HDMI 1 / BRI / numeric input 1
Select the HDMI 1 input.
Use with ALT to bring up the
Brightness control, then adjust the
value with the LEFT and RIGHT
arrow buttons.
17
TEST / SWAP / numeric input 0
Show a test pattern. Press again to
show the next test pattern:
...Off, White, Black, Red,
Green, Blue, CheckerBoard,
CrossHatch, V Burst, H Burst,
ColorBar...
Pic Mute
MENU
EXIT INFO
HDMI1
OK
OFF ON
ALT
LENS
FOCUS ZOOM
IN
OUT
IN
OUT
SHIFT
21 3
HDMI2 DVI
DISPLAYPORT HD-T 3GSDI
VGA COMP1 COMP2
BRI
TEST
CON GAMMA
R G B ALL
3D EYE PIP SWAP
4 5 6
7 8 9 0
ALT
ADDR
OSD
OFF
ON
DEFAULT
FREEZE
RE-SYNC
A B C D
USER PRESET
OPEN CLOSE
13
11
12
14
15
16
17
Remote control
