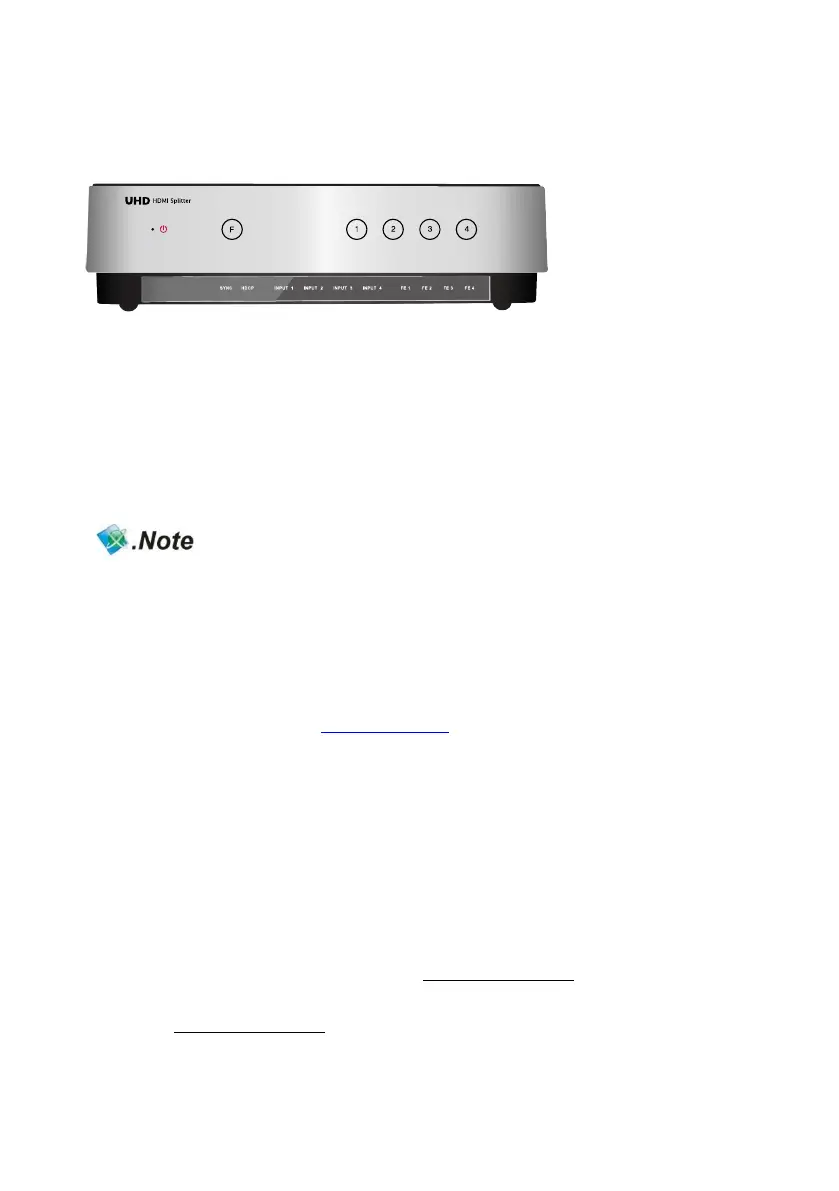

HDMI Splitter
How to use HDMI Splitter
1. Power ON splitter.
2. Power on source players to use such as Blu-ray Player or
FHD/UHD Set-top box, etc
3. Power on display devices
4. Choose one of the input no. for the source player to use.
It’s possible to select the input number by touching the number
button in the front panel or by pressing the button in the remote
control unit.
You must connect UHD TV to use HD player supporting 4K.
( Blu-ray player)
Troubleshooting for no power
- Check if LED light on the front is turned on.
- Make sure the power cord connectors on both ends are firmly attached.
Please refer to the webpage, www.dzonei.com for more detailed information
for the troubleshooting
USB (Firmware upgrade) & RS-232 (Remote Control)
USB : You can upgrade firmware by USB easily when new firmware
is released.(
FAT32 file system is only available in USB)
RS-232: RS-232 is capable of external control via serial port provided
control protocol by Digitalzone.
Remark:
The SDK will be released in www.dzonei.com.
Please check more detailed information in
www.dzonei.com regarding download and how to use.
