Passenger Sensor
PINK
RED x 2
BLACK
fuse 2 A
fuse 2 A
CAR LIGHT SWITCH
+12 V
BROWN
GREY (F)
GREEN (H)
VIOLET (G)
YELLOW (J)
fuse 2 A
fuse 2 A
fuse 2 A
fuse 2 A

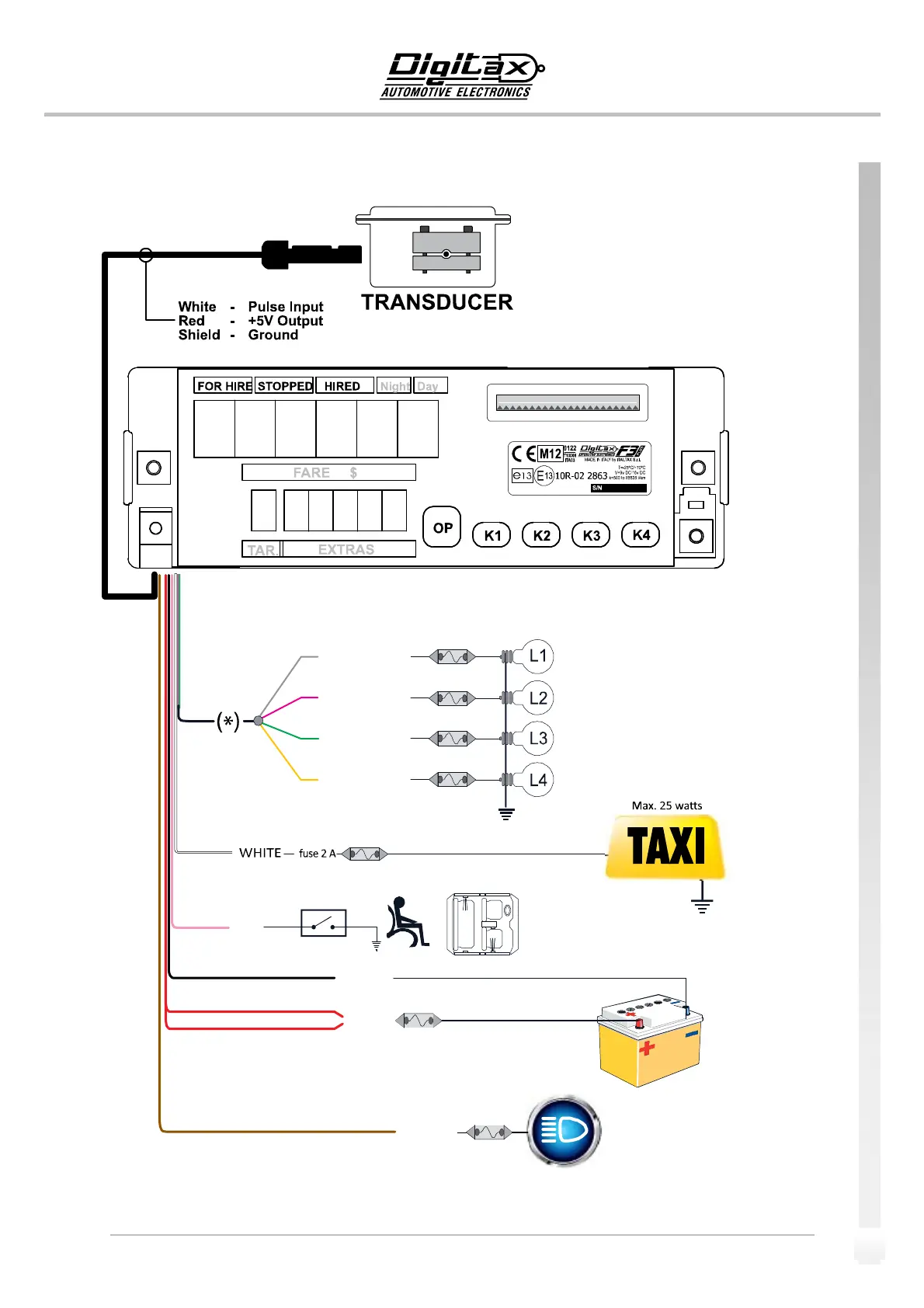

ElectricalConnectionsTable
Warning!
The taximeter is not provided with his own set
of fuses. You must install them by yourself
following the scheme. You will be responsable
for every damage that you can cause for the
omission of these fuses. Digitax rejects every
legalresponsability.
(*)HardwareOptional
