DigiTech CabDryVR - Page 11

9

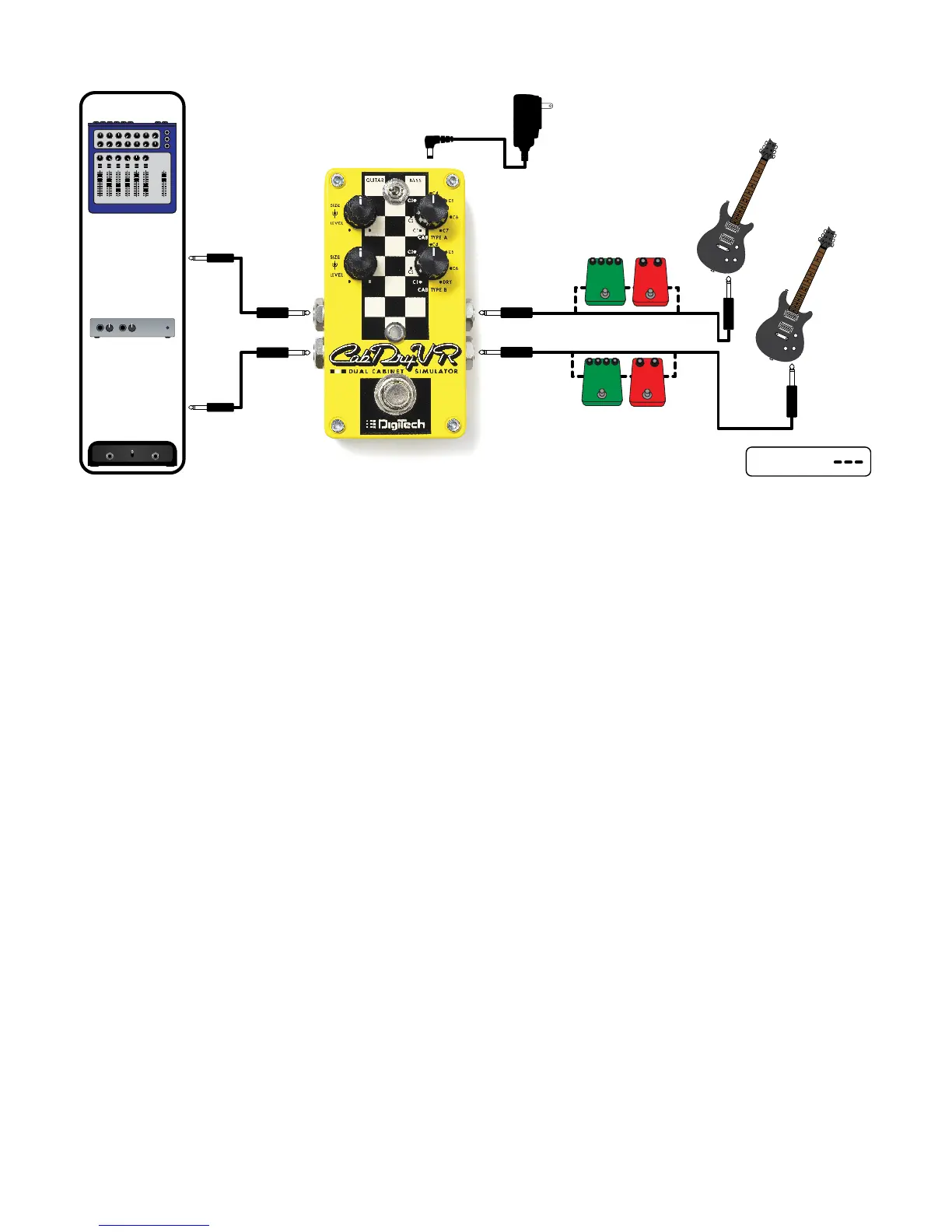

Dual Instruments – Dual Input/Output
HARMAN
Power Supply
(sold separately)
CAB A IN
CAB A OUT
CAB B OUT
OUT
CAB B IN
Optional
Use only unbalanced TS instrument cables for audio connections.
Other Effects
Instrument 1
Instrument 2
OUT
Other Effects
or DI
Box
INPUT THRU
0dB
20dB
40dB
PAD
Mixer...
I 2 3 4 5 6 M
IN 1
IN 2
or Audio
Interface...
Line In
1
Line In
2
