DigiTech DC-1120 - Front View Controls; Rear View Connections

-2-

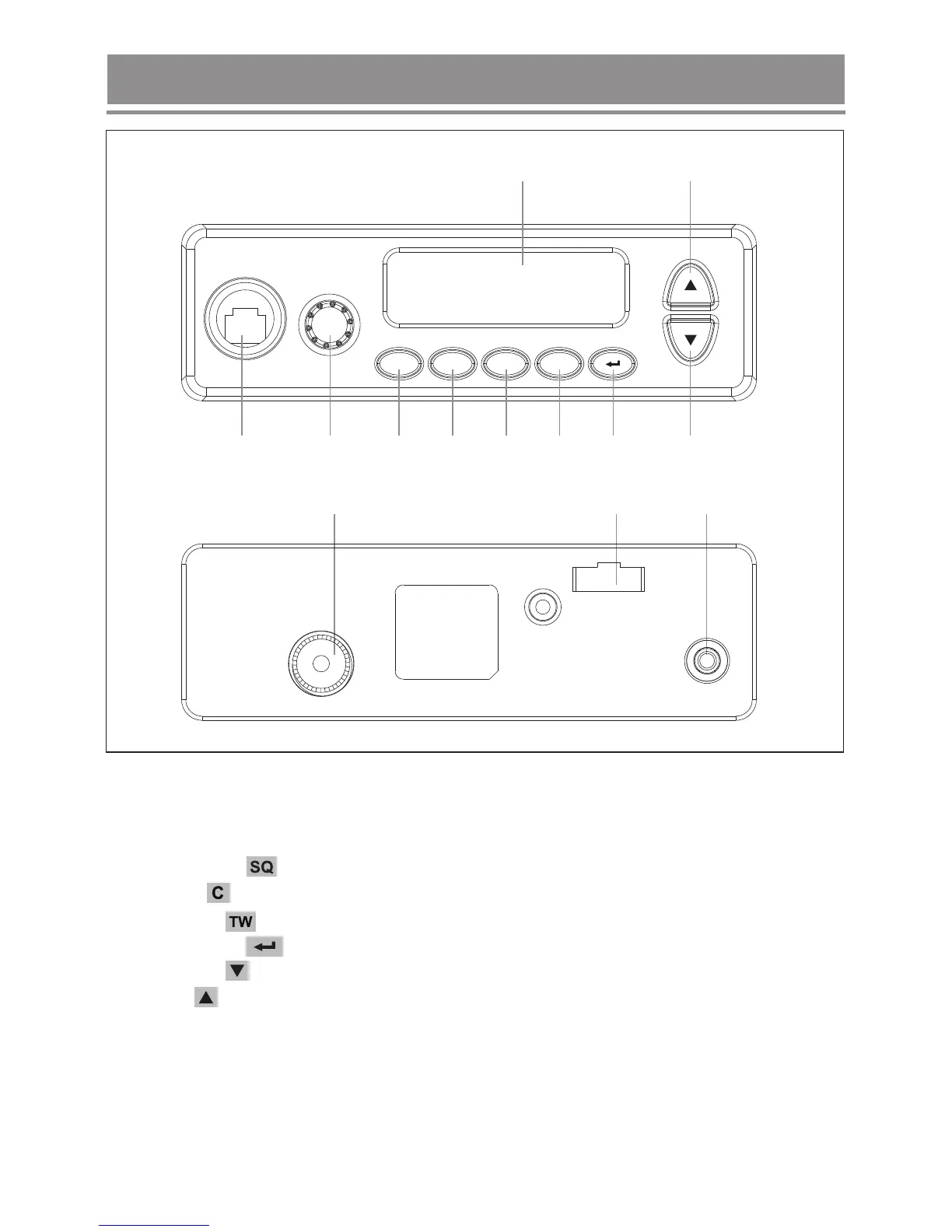

Controls and Indicators
11 12
13
Front View
Rear View
ANT.
EXP. SP.
DC 13.8V
2
4
3
5
6
7
9
8
10
1
SQ
Channel
Volume
MENU
C TW
1. Microphone connection
2. Power ON/OFF and Volume Knob
3. MENU button
4. Squelch button
5. Call button
6. Triple watch button
7. Confirm button
8. Down button (Channel /Menu)
9. Up button (Channel /Menu)
10. LCD Display
11. UHF Antenna connection
12. Power Input connection (13.8V DC)
13. Ext. Speaker Jack
