DigiTech VOCALIST LIVE 2

13

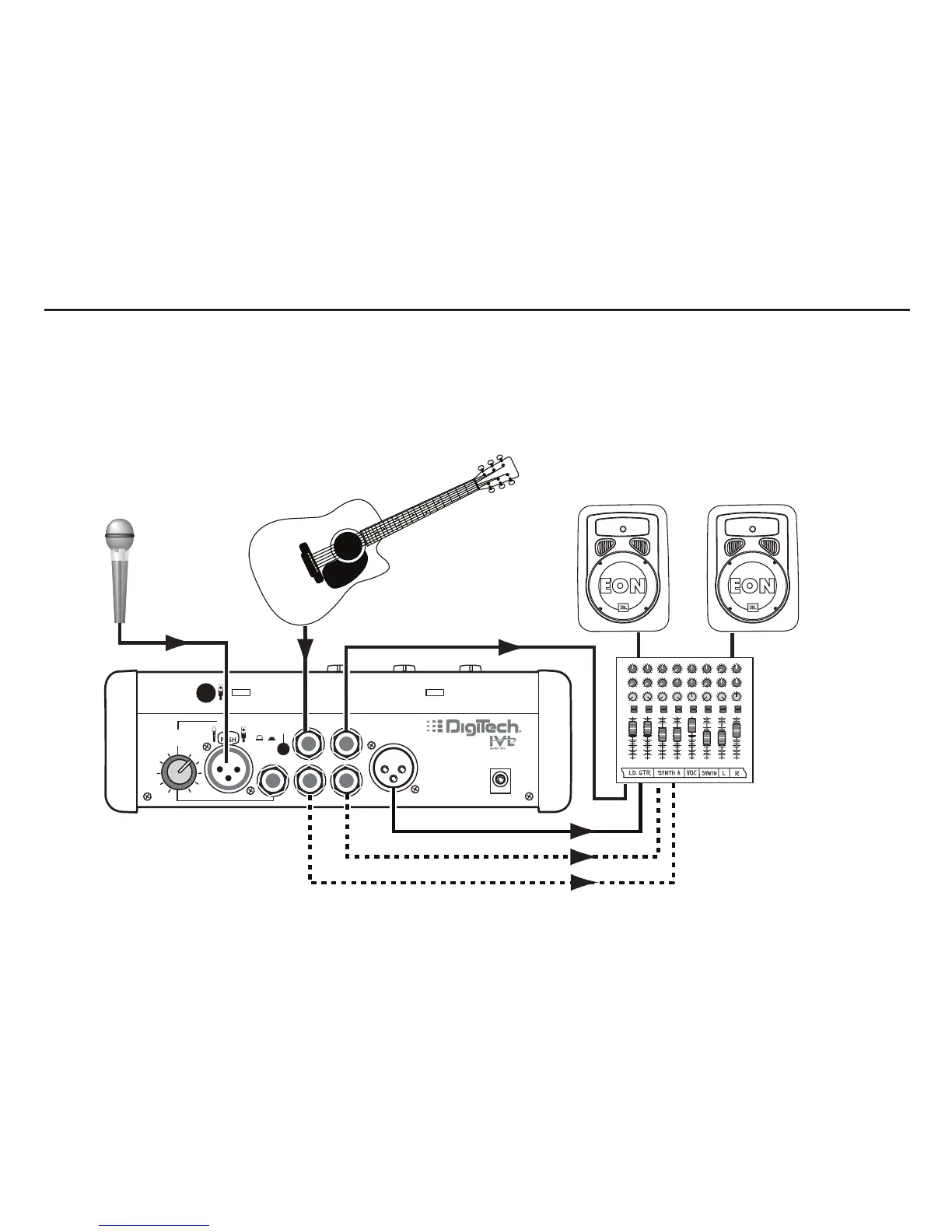

Guitar and Microphone In/P.A. Out (Mono or Stereo)
Guitar In
Phantom Power
L R
Guitar Thru
Mono Out
Line Out
Line In
Mic In
Mic/Line
Input Level
Guitar
Ground Lift
OFF ON
