APPENDIX 4 HARD DISK INSTALLATION

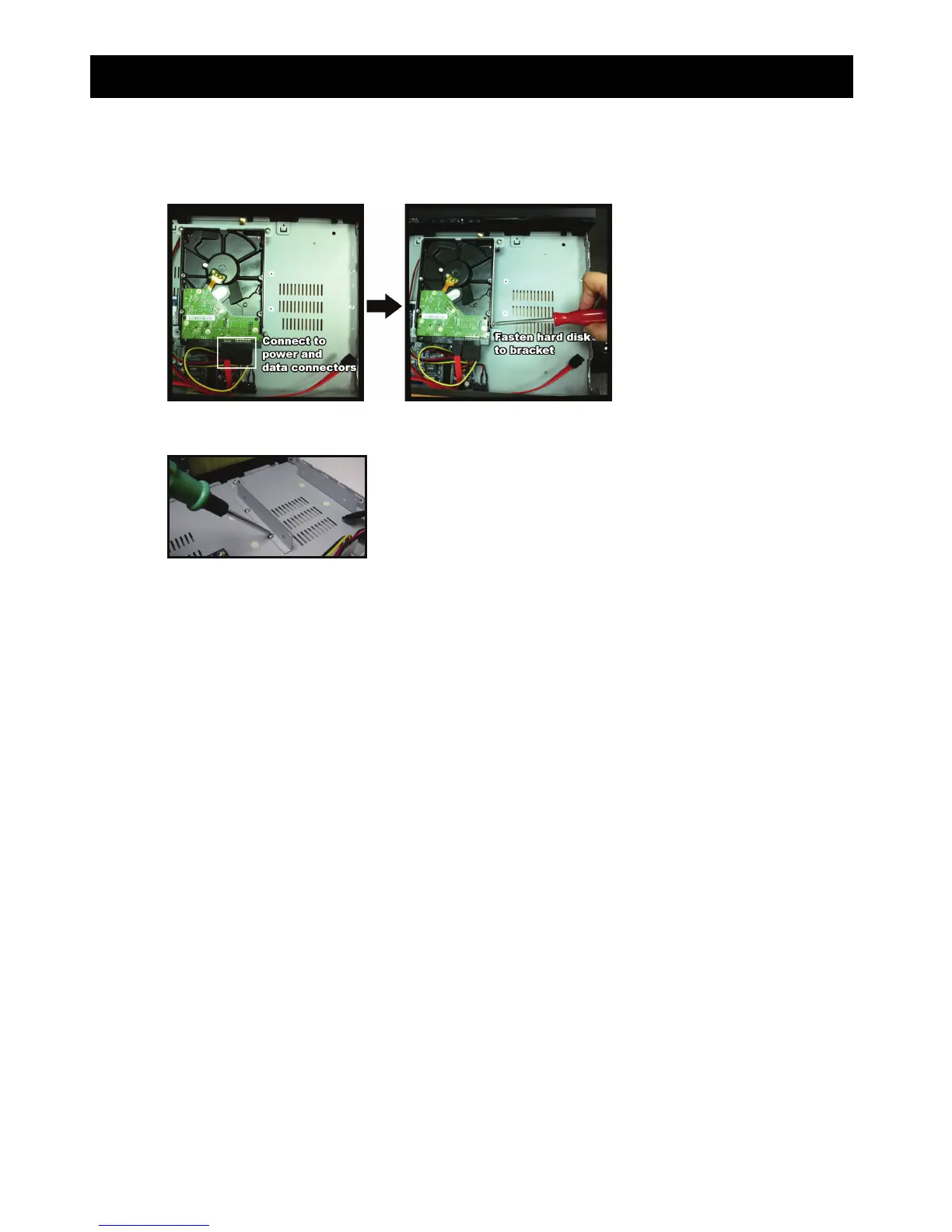

Step1: Remove the top cover.
Step2: Find the hark disk bracket in the DVR, and place the compatible hark disk in the bracket.
Step3: With the PCB side facing up, connect the hard disk to the power connector and data connector.
Step4: Fasten the hark disk with the supplied screws, two for each side.
Step5: To install another hard disk, find the supplied hard disk brackets in the package, and fix them onto the NVR
base.
Step6: With the PCB side facing up, connect the hard disk to the power connector and data connector.
Step7: Then, put the hard disk in the bracket, and fasten it with the supplied screws, two for each side.
Step8: Replace the top cover and fasten the screws you loosened in Step1.
