2. CONNECTION

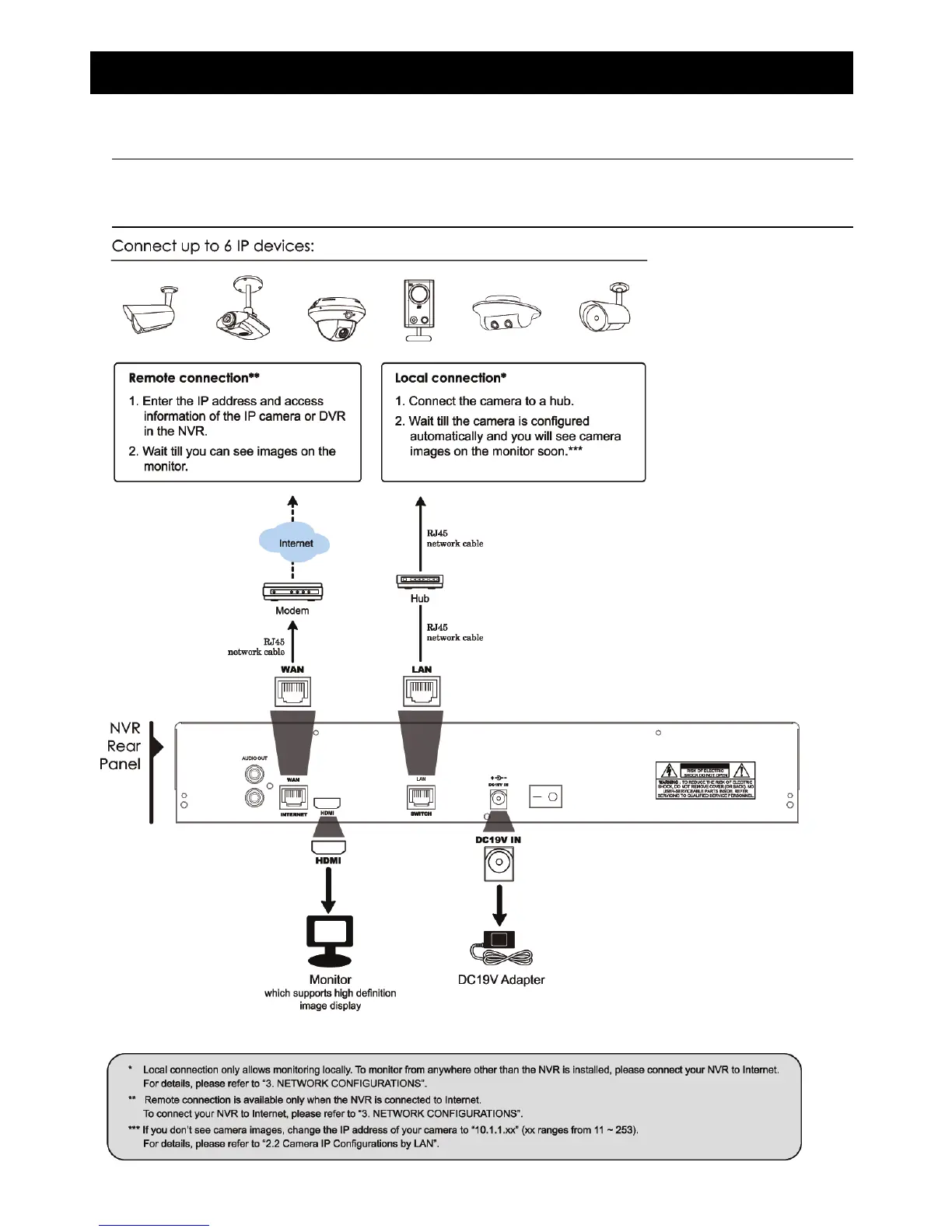

2.1 Simple Connection Diagram
Note: Before connecting the system and powering on the NVR, make sure a hard disk is installed in the NVR for
evidentiary recording. To know how to install a hark disk, please refer to “APPENDIX 4 HARD DISK
INSTALLATION’ at page 15.
