8
DIN-Rail Mounting
The DIN-Rail is already screwed on the Industrial Equipment.

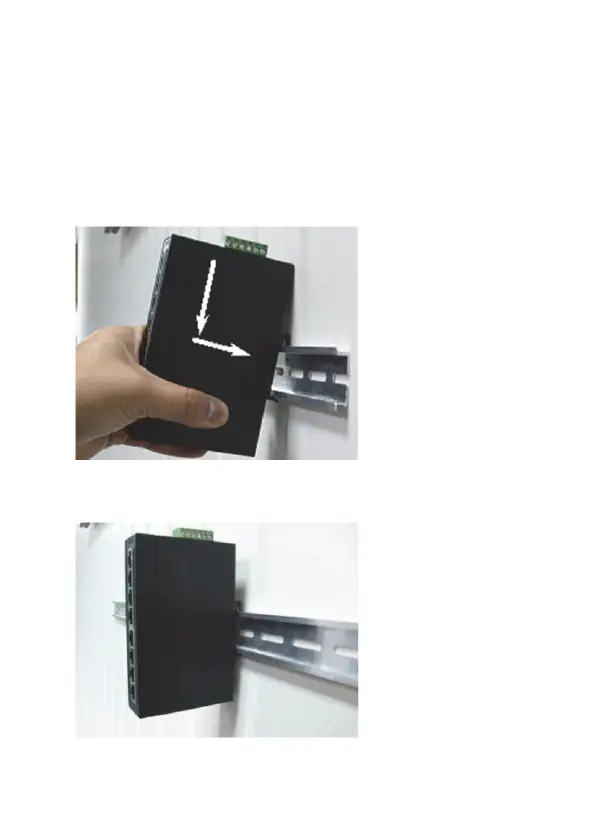

Please refer to following figures and know how to hang the
Industrial Equipment:
Step 1: Lightly press the button of DIN-Rail into the track.
Install Industrial Equipment in DIN-Rail mount.
Step 2: Check the DIN-Rail is tightly on the track.
