Digitus DN-651118 User Manual

5

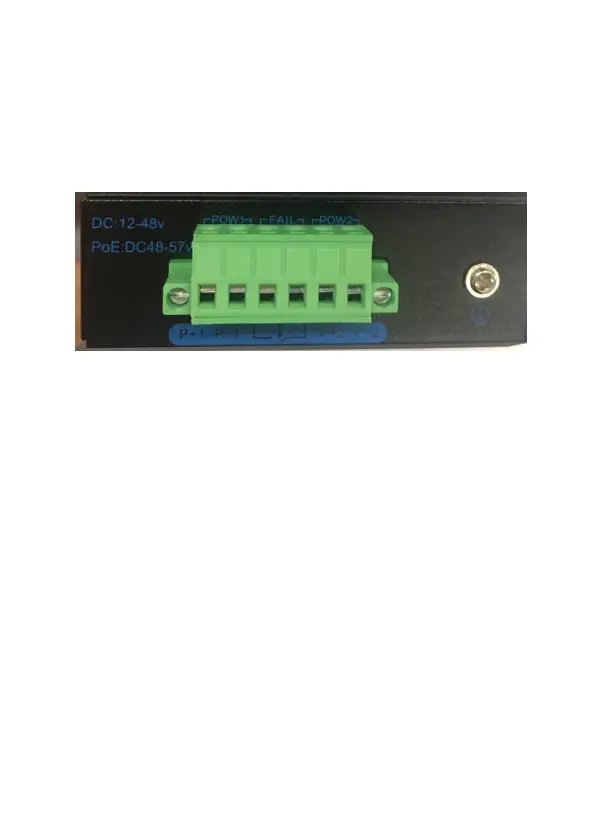

Upper Panel
The upper panel has a standard 6-Pin industrial power input
terminal for double redundant power backup and accepts DC
power input.
Power input
This unit provides a 6-pin terminal block. It can be operated
using 12-48 V DC power source. Always make sure your input
voltage is within this supported voltage range.
To connect power:
This unit supports two power inputs. Follow the printed
polarity for +P1-, +P2- and ground. Connect positive wires to
V+, connect negative wires to V-, and connect a neutral wire
to the ground mark.
+P1- is for power input one connection (PWR1).
+P2- is for power input two connection (PWR2).

Digitus DN-651118 Specifications

General

Installed SFP modules quantity	0
Gigabit Ethernet (copper) ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	4
Stackable	-
Certification	CE
Product color	Black, Blue
Rack mounting	No
Number of fans	0 fan(s)
Housing material	Metal
Country of origin	China
DIN rail mounting	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Cable types supported	Cat3, Cat4, Cat5
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
MAC address table	4096 entries
DC input voltage	12 - 48 V
Power protection features	Over voltage, Short circuit
Operating temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95 %
Package depth	135 mm
Package width	162 mm
Package height	53 mm
Package volume	1159.11 cm³
Package weight	483.333 g
Switch type	Unmanaged
Switch layer	L2
Mean time between failures (MTBF)	300000 h
Ethernet interface type	Gigabit Ethernet
UK Trade Tariff code	85176200

Weight and Dimensions

Depth	86 mm
Width	118 mm
Height	39 mm
Weight	360 g
