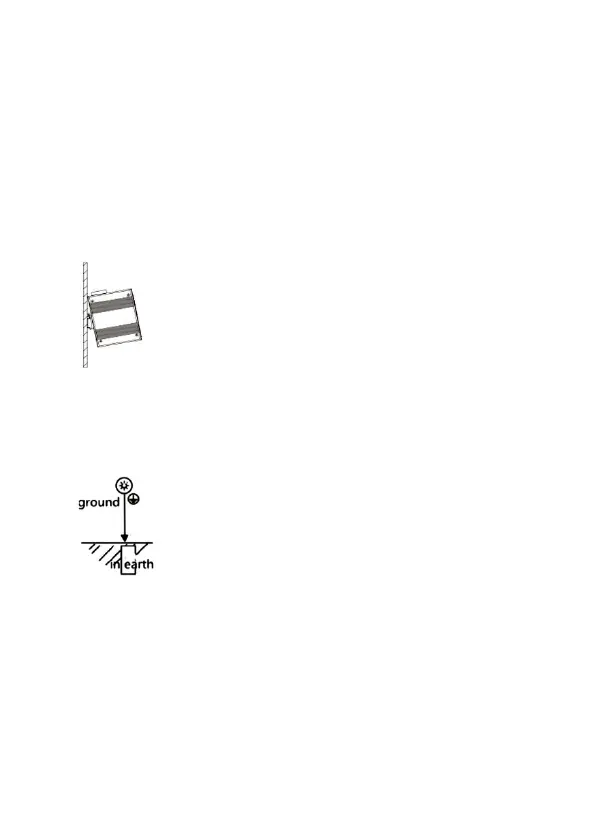

7.2 Din rail installation
The first step is to check the grounding and stability of the guide rail:
the guide rail slot of the switch is clamped into the guide rail; The
second step: from the center to both sides of the guide rail positioning
screws in order. Step 3: Use screws to fix the mounting rail card slot
on the fixed guide groove at both ends of the guide rail to ensure that
the guide rail and the switch are fixed on the guide rail vertically and
stably.
7.3 Grounding
Fix the grounding wire to the grounding screw above the switch and
ensure good reliable connection of the grounding system.
7.4 Power Connection
Insert the power cord into the specified position of the 6-core
terminal, and insert the terminal into the standard power supply inlet
(P+1 and P-1 input corresponding to the first power supply P1, and P+2
and P-2 input corresponding to the second power supply P2). The
available voltage standard of the power supply is supported from
12VDC to 52VDC
