8

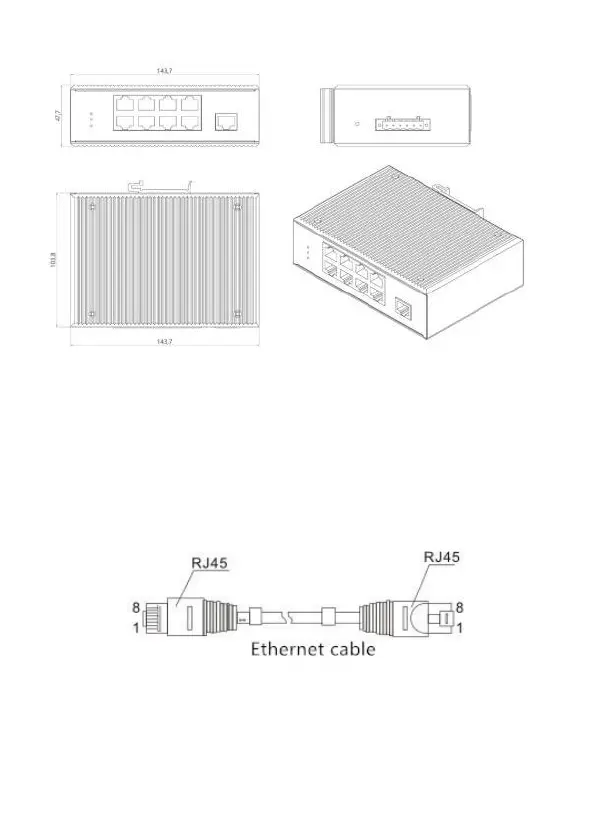

Switch size (mm)
6. Interface Definition
6.1 10/100Base-TX Ethernet interface:
This series of switches provides MDI/MDI-X self-identification with
cable support on all 10/100Basc-TX ports. In use, the Ethernet port of
the switch can be connected with other Ethernet terminal devices
through network cables (direct or cross). Please use Class 5 shielded
twisted pair. The Ethernet port pin definition is shown in the following
figure:
RJ45 port supports automatic MDI/MDI-X operation, you can use a
straight line to connect to the PC or server, connect to other switches
or hubs. In the through line (MDI), pins 1, 2, 3, 4, 5, 6, 7, 8 correspond
to the connection;
