2
1. Overview
Industrial Ethernet switch with 16-Port 10/100/1000Mbps Base-TX
and 2-Port Gigabit SFP, the Product meet CE, FCC, RoHS standards.
DN-651138 switch has the operating temperature of -40°C ~ 80°C, has
the super firmness can adapt to all kinds of harsh environment, can
also be conveniently placed in the compact space of the control box.
The installation characteristics of the guide rail, wide temperature
operation, IP40 protection class housing and LED indicator light make
the DN-651138 a plug and play industrial grade device, providing a
reliable and convenient solution for users to network their Ethernet
devices.

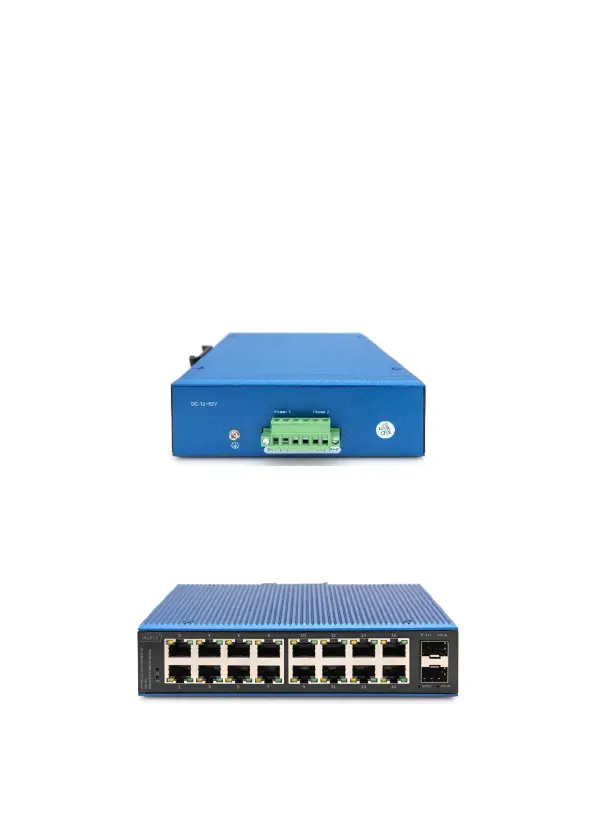

2. Switch Panel
Side panel: P1 and P2 are the number of connecting terminals, and
F is the interface of alarm. P+1 and P-1 are respectively to the positive
and negative poles to be connected; Earthing screw, used for earthing
equipment.
Front panel: The Yellow LED on the port is the LINK light, which is on
when the connection is established and the data transmission is
flashing.
