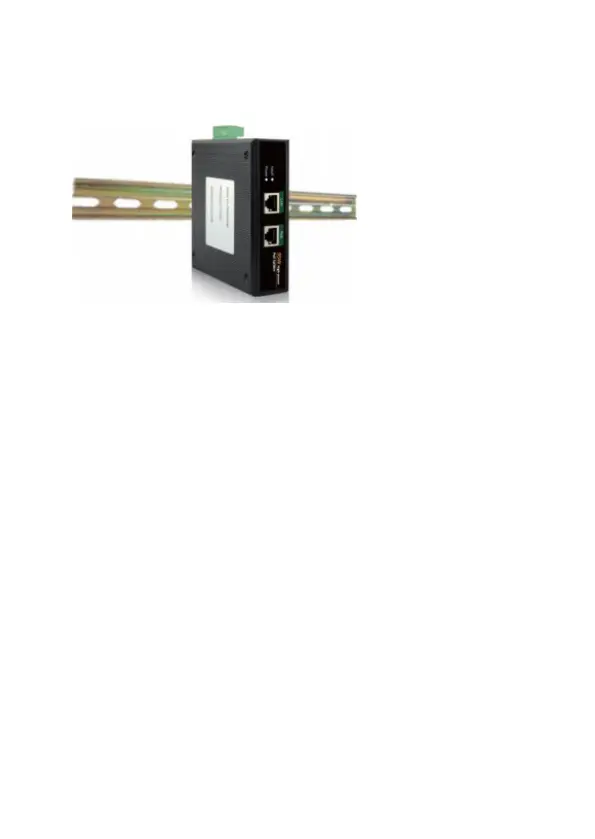

The DIN card into the DIN rail connector, check and confirm the
product reliable installation to DIN rail.
7 Connecting the PoE Splitter
You can use 60W PoE Splitter with PSE to expand your
network to where there are no power lines or outlets, where
you wish to fix devices such as APs, IP Cameras, or IP Phones,
etc. The following steps will tell you how to connect the PoE
Splitter correctly.
1. Use a UTP cable to connect a PoE port of the PSE
(ex. PoE Switch) to the PoE port.
2. Connect the Data port to the Ethernet device with
UTP cable for data transmitting.
3. Connect the DC(Vout1) port to the power port of
the same Ethernet device with the provided power cable.
