14

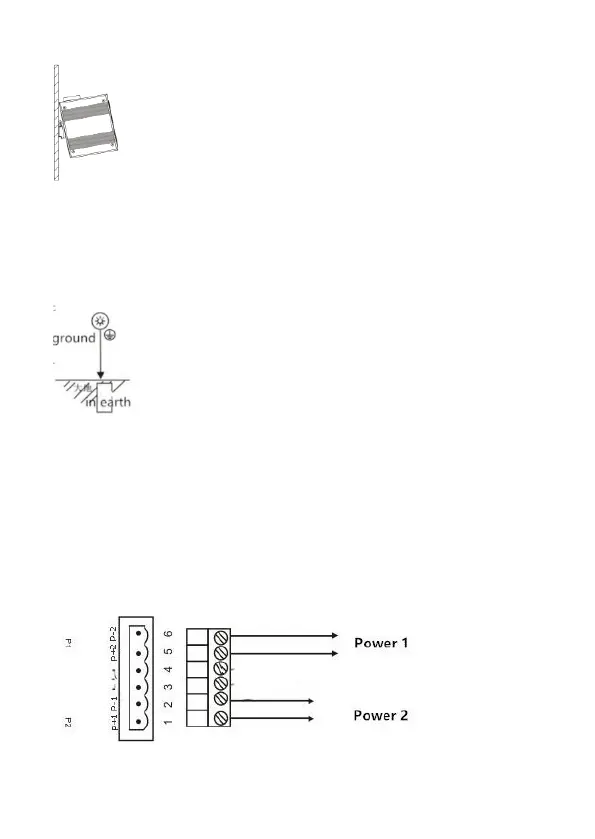

8.2 Din rail installation:
The first step is to check the grounding and stability
of the guide rail: the guide rail slot of the switch is
clamped into the guide rail.
The second step: from the center to both sides of
the guide rail positioning screws in order. Step 3:
Use screws to fix the mounting rail card slot on the
fixed guide groove at both ends of the guide rail to
ensure that the guide rail and the switch are fixed
on the guide rail vertically and stably.
8.3 grounding
Fix the grounding wire to the grounding screw above
the switch, and ensure good reliable connection of
the grounding system.
8.4 Power Connection
Insert the power cord into the specified position of the 6-core terminal,
and insert the terminal into the standard power supply inlet (P+1 and
P-1 input corresponding to the first power supply P1, and P+2 and P-2
input corresponding to the second power supply P2). The available
voltage standard of the power supply is supported from 48VDC to
57VDC
