7

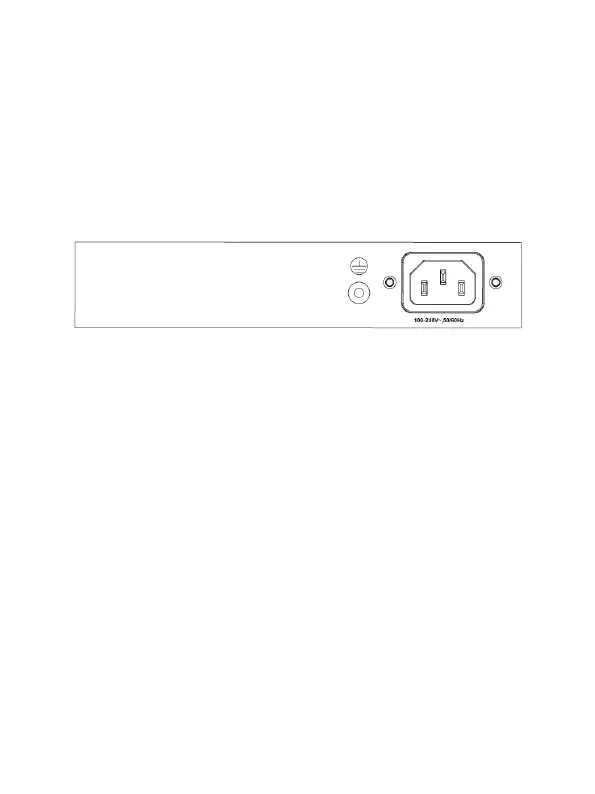

Rear Panel
The rear panel of the PoE Switch indicates an AC inlet power socket,
which accepts input power from 100 to 240V AC, 50/60HZ.
Note: the lightning protection grounding column is located on the
left side of the rear panel, please make sure to use the conductor to
ground in case of lightning!
Power socket
Connect the female connector of the power cord here, and the male
connector to the AC (Alternating Current) power outlet. Please make
sure the voltage of the power supply meets the requirement of the
input voltage.
Grounding column
The switch already comes with lightning protection mechanism. You
can also ground the switch through the PE (Protecting Earth) cable of
AC cord or with Ground Cable.
