three turns. Do not fill the shot dispenser at this time.
14. Place the spent primer cup (#16699) on its
spent primer cup bracket (#16209), it’s located on the
lower right hand side of the machine’s platform –
slide the cup onto the bracket rails.

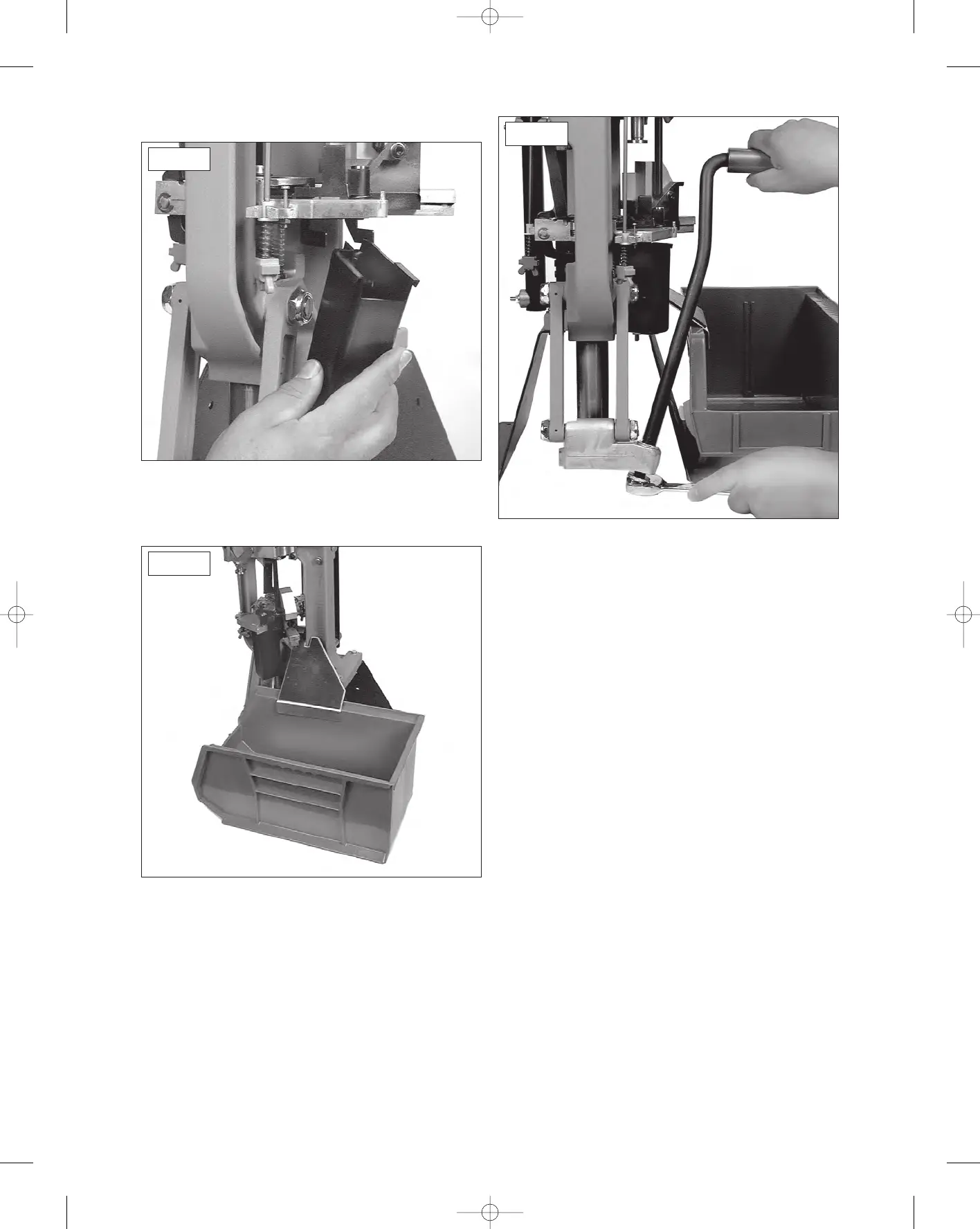

Fig. 17
15. Position the Dillon bin (#17125) on the
machine’s right side, then place the shotshell chute
(#16672) between the machine and the Dillon bin
(#17125).
Fig. 18
16. Finally, install the roller handle (#22183). Fig.
19
21
Fig. 17
Fig. 19
Fig. 18
