Dillon SL 900 - Lower Machine Assembly

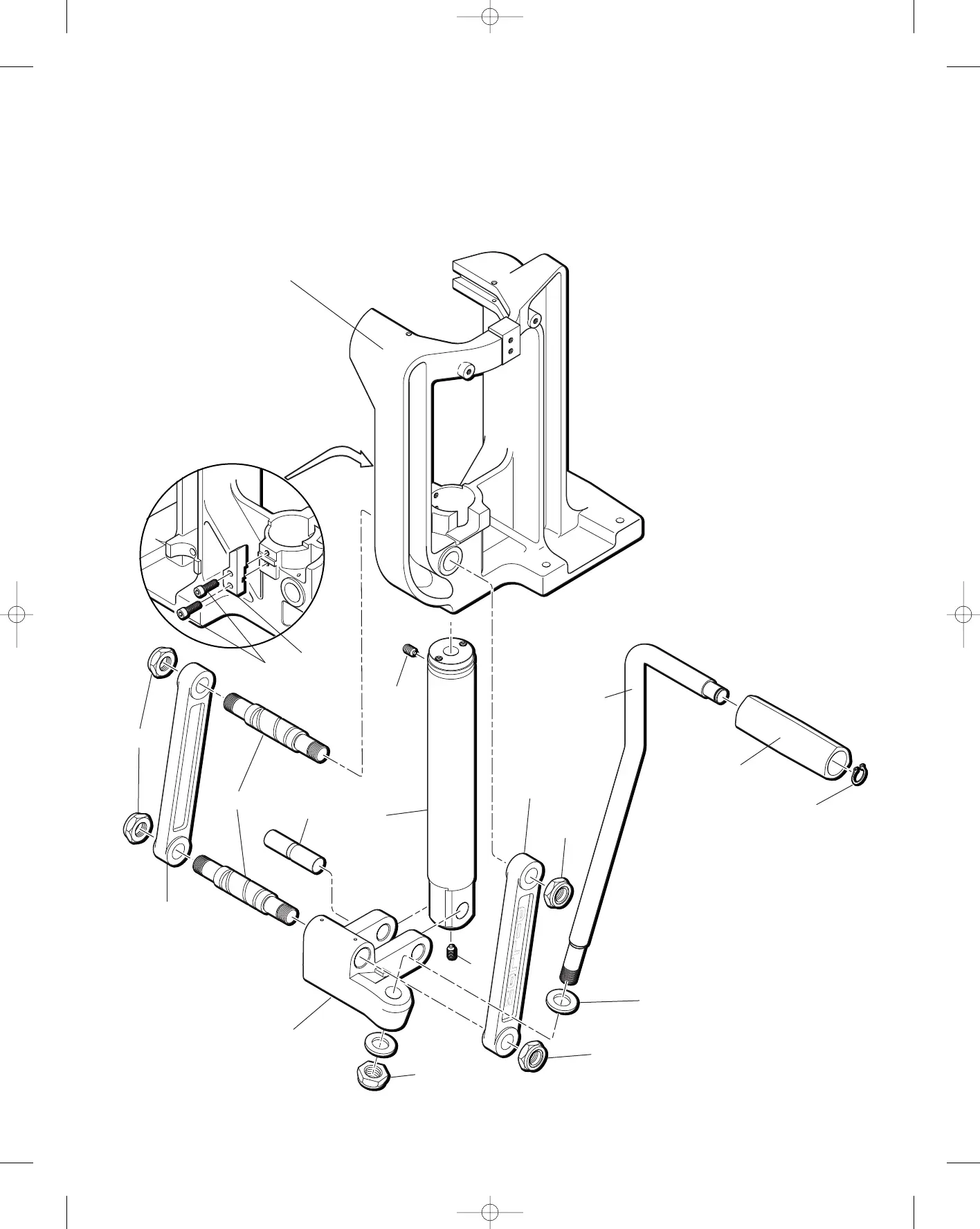

Lower Machine Assembly
22183
Handle
Assembly
14922
13841
13841
17069
17918
17068
13841
13704 (2)
13789
13485
17637
13830
13700
16670
13841
14922
16671
13989
Part # Description
13485 Mainshaft
13700 Link Arm Shoulder Pin
13789 1/4-28 Set Screw
13830 Mainshaft Pivot Pin
13841 Nylock Nuts
13989 10-24 x 5/8 SHCS
14922 Link Arms
16670 SL 900 Crank
16671 Indexing Block
17182 SL 900 Frame
17637 1/4-20 x 4 1/2
Hex Head Screw
22183 Roller Handle Assembly
13704 Washer (2)
13841 Nylock Nuts
17068 Handle Bar
17069 Clip
17918 Molded Handle
17182
9
SL 900, May 2007 5/21/07 11:51 AM Page 9
