Dillon SL 900 - Upper Machine Assembly

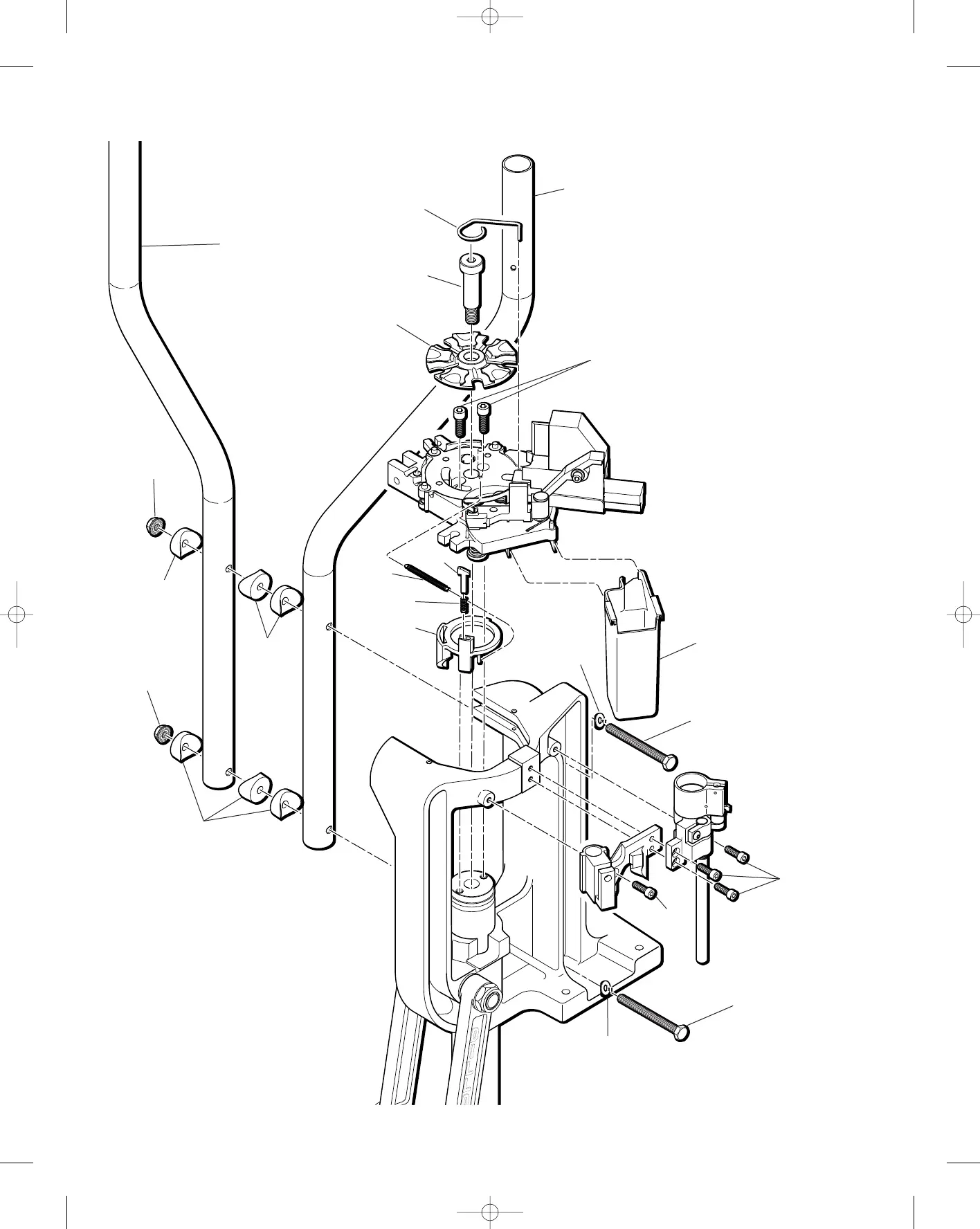

Upper Machine Assembly
SL900 Upper Machine Assy
16676
17123
13418
*16675
13966
13667
13791
13938
13677
16699
13856
17637
13989
13989
17637
13856
13613
13988
13613
13613
13988
17124
* indicates a gauge specific part
Part # Description
13418 Shellplate Bolt
13613 Clamp
13667 Index Pawl
13677 Ring Indexer
13791 Indexer Return Spring
13856 1/4 Washer SAE
13938 Pawl Spring
13966 1/4-28 x 3/4 SHCS
13988 1/4-20 Nuts
13989 10-24 x 5/8 SHCS
16675 Shellplate, 12 ga.
16676 Ejector Wire
16699 Spent Primer Cup
17123 SL 900 Casefeed Post
17124 Shot Post
17637 1/4-20 x 4 1/2
Hex Head Screw
