10) TELESCOPIC ARMS
Telescopic arms are fitted to the oven allowing your baking trays to slide out, making it
easy to check on your baking and taking food out of the oven.
Side rails should firstly be removed from the oven chamber as per section 8 instructions.
Gently pull down on the supporting side rail to unclip the telescopic arm from the rail.
Caution: Only apply gently pressure to avoid damaging the side rails and telescopic arm
clips. (Fig 9.1)
Note : The side rails and telescopic arm components are specific to the left and right side
of the oven. Refer to section 9 for side rail installation.
If cleaners are used on the telescopic arms please rinse thoroughly to remove all residue
from within the tracks before use.
To reinstall the telescopic arms, ensure the prongs at the end of the telescopic arm faces
upwards and the arm slides out in the direction of the “V”shaped groove on the side rail
in which it will be installed.

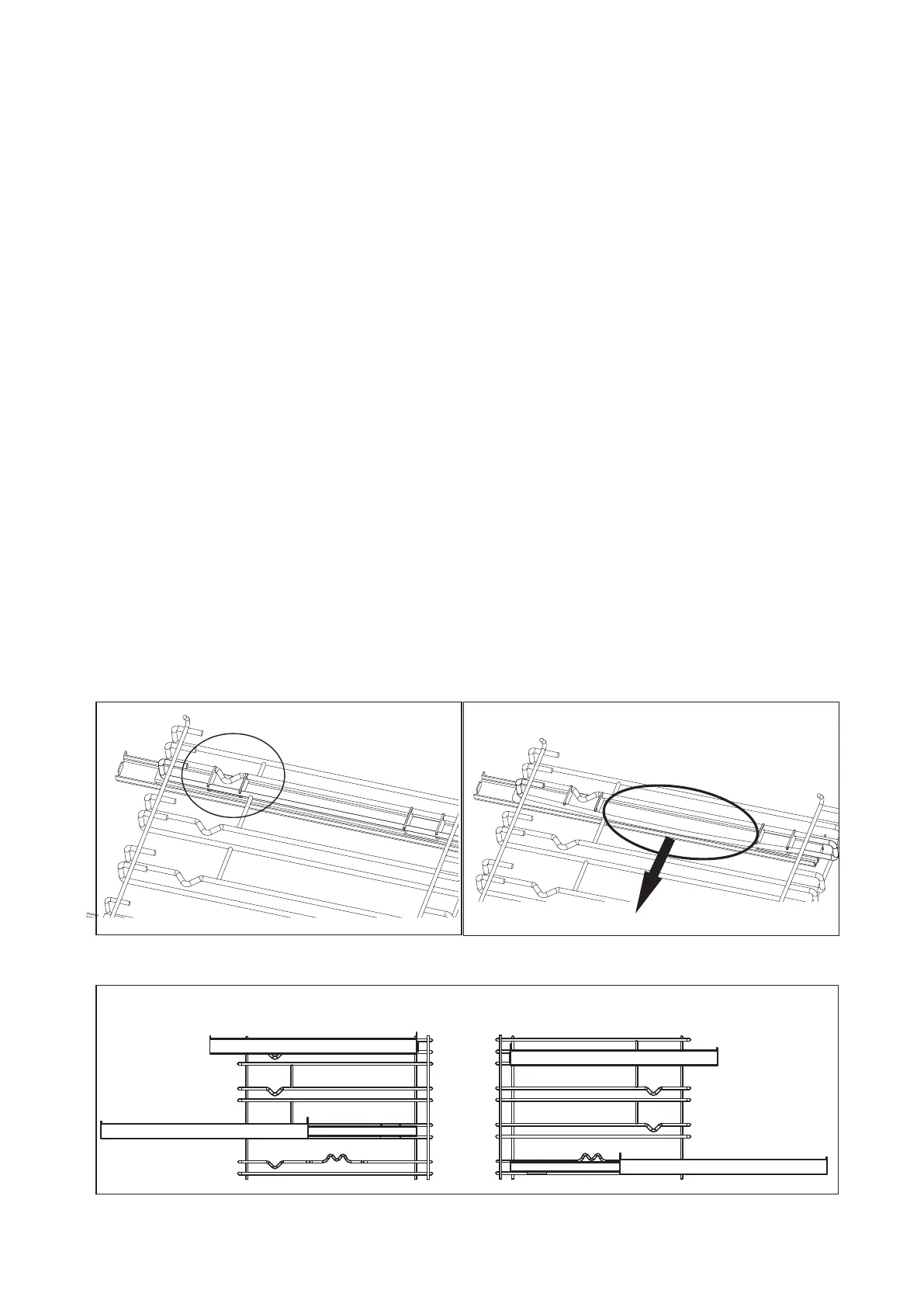

Slide the top of the telescopic clips into the rail, the top of the front telescopic clip must
be positioned between “V”groove of the side rail (Fig 10.1). Gently pull down on the
lower rail to slide the bottom of the clip into position. (Fig 10.2)
Fig 10.1 Fig 10.2
Fig 10.3
